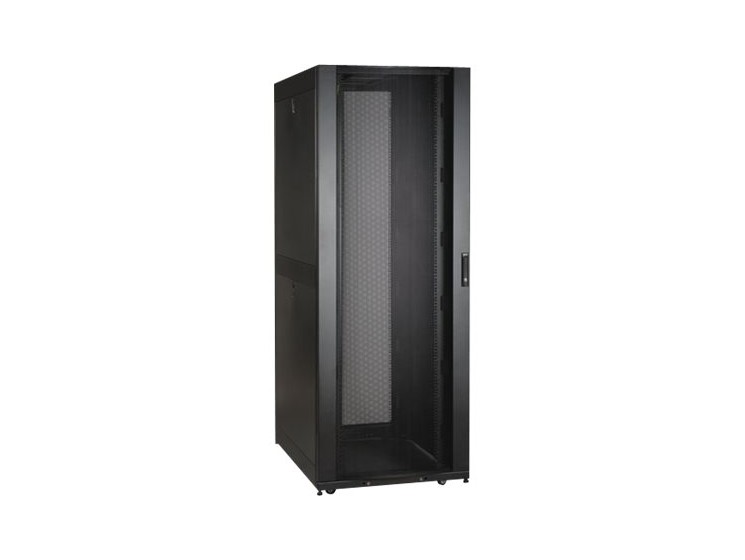

Eaton Tripp Lite Series 48U Rack Enclosure Server Cabinet 30" Wide w/ Doors & Sides - Rack cabinet - black - 48U - 19"

The SR48UBWD is a WIDE version of the standard 48U SmartRack. This enclosure is 750mm wide (30") compared to the standard 600mm wide (23.6"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.
The SR48UBWD features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
The SR48UBWD houses 3000 lb of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR48UBWD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR48UBWD meets all requirements toward PCI DSS compliance.
The top panel of the SR48UBWD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBWD is open-bottom.
All components of the SR48UBWD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR48UBWD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

• Lockable front and rear doors for enhanced security
• Removable side panels and doors allow for easy access
• Compliant with NOM, UL 60950, and RoHS standards
• Supports weight limit of 1360.8 kg
• Spacious 30" wide design accommodates a variety of equipment

• Secure access
  This cabinet features lockable front and rear doors, providing essential security to safeguard your equipment from unauthorized access.
• Easy maintenance
  Removable side panels and doors facilitate quick and straightforward access for maintenance and upgrades.
• Robust compliance standards
  The enclosure adheres to standards, including NOM, UL 60950, and RoHS, ensuring both safety and reliability.
• High weight capacity
  With a weight limit of 1360.8 kg, this cabinet can support a broad range of server and networking equipment.
• Spacious design
  The 30" width and 48 rack units height provide ample space to organize your devices efficiently.

The SR48UBWD is a WIDE version of the standard 48U SmartRack. This enclosure is 750mm wide (30") compared to the standard 600mm wide (23.6"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.
