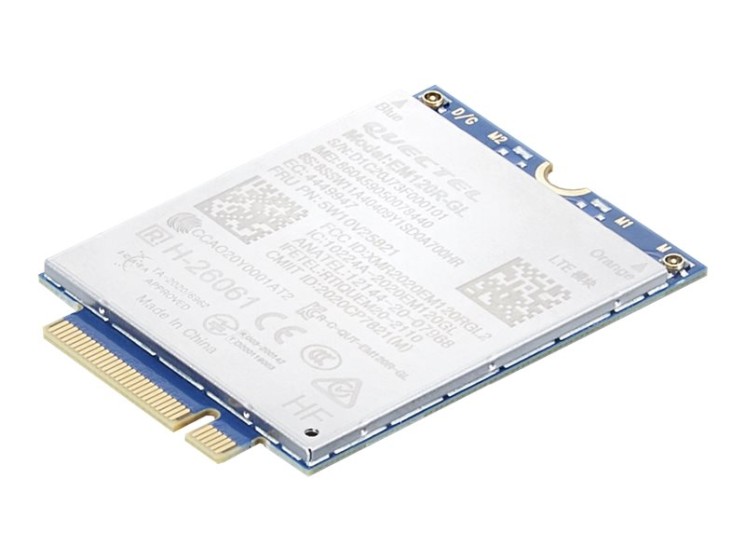

Quectel EM120R-GL - Wireless cellular modem - 4G LTE Advanced - M.2 Card - 600 Mbps - for ThinkPad X1 Carbon Gen 9 20XW (WWAN upgradable), 20XX (WWAN upgradable)

EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps.
EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage.

• Supports DFOTA
• Supports DTMF
• Supports MIMO
• USB 2.0 high-speed interface
• Multi-constellation GNSS receiver

• Reliable performance
  The Lenovo Quectel EM120R-GL modem offers high-speed connectivity with a maximum transfer rate of 600 Mbps, ensuring users can enjoy seamless communication and data transfer.
• Wide operating temperature range
  Designed to function in temperatures from -25°C to 75°C, this modem is suitable for various environments, providing flexibility for different applications.
• Multi-standard compliance
  With compliance to standards such as FCC, JATE, and IC, the EM120R-GL assures users of a dependable and widely compatible solution for their connectivity needs.
• Convenient integration
  The internal M.2 card form factor allows for straightforward integration into devices, making it a suitable choice for manufacturers looking to enhance their products with wireless capabilities.
• User-friendly setup
  The included service activation feature allows for quick and easy setup, streamlining the process for users who need efficient broadband access.

EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps.
