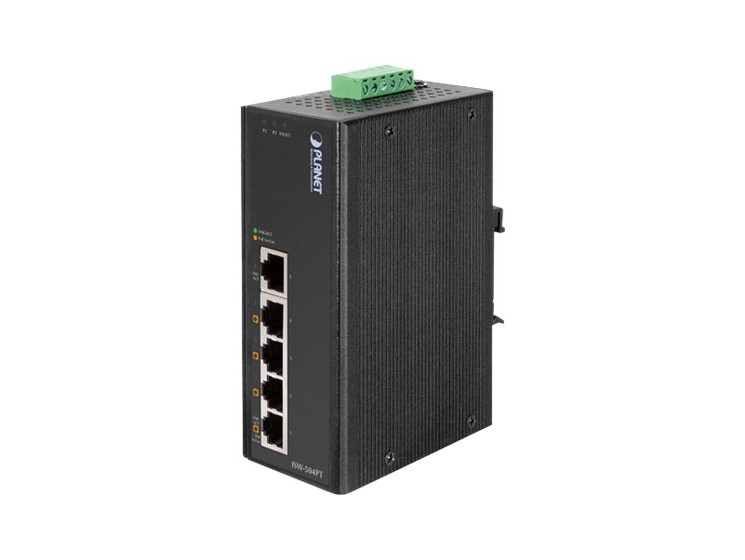

PLANET ISW-504PT - Switch - 4 x 10/100 (PoE) + 1 x 10/100 - DIN rail mountable, wall-mountable - PoE - DC power

The ISW-504PT Power over Ethernet Industrial Switch from Planet Technology has been crafted to make connection simple in tough industrial environments. This unit has the ability to transmit power and data over one Ethernet cable to remote PoE devices. The unit features 5 10/100Mbps copper ports with a 4-Port IEEE 802.3af Power over Ethernet inject interfaces. This unit comes in a durable IP-30 rugged case, which makes it ideal for industries. The ISW-504PT also provides to 15.4Watts power per port for IEEE 802.3af remote powered devices, which makes it the unit of choice when seeking to install wireless service or surveillance in environments ranging from 40 to 75 degrees Celcius.

• Stable IEEE 802.3af PoE Industrial Switch
• Installation in tough environments made simple
• Innovative switch technology

• Stable IEEE 802.3af PoE Industrial Switch
  A PoE feature in industrial Ethernet devices makes operation even simpler in tough environments. The ISW-504PT unit is compatible with the IEEE 802.3af standard and powers up to 4 PoE compliant devices. The maximum distance is 100 meters through a 4-pair Cat 5 / 5e UTP wire. Since data and Power over Ethernet are featured in this unit, the ISW-504PT cuts down costs by removing the need for additional wiring or installation. The unit features a single wire that carries data and power, which makes installation simpler than ever. In addition, the ISW-504P unit supports 24V DC or 48V DC dual voltages input and has the ability to offer a large range of industrial IEEE 802.3af PoE applications.
• Installation in tough environments made simple
  The ISW-504PT features immunity to electrical surges and interference, which can be experienced in different industries. Since the unit operates efficiently in temperatures ranging from -40 to 75 Degree C, the ISW-504PT can be installed in almost any location. The unit features dual-redundant, reverse polarity power inputs in 24V DC or 48V DC. This allows for the operation of high availability applications that need stronger backup power inputs.
• Innovative switch technology
  The ISW-504PT features innovative switch technology and 5 10/100Mbps UTP ports. The unit showcases non-blocking switch fabric, wire-speed throughput up to 1Gbps, and a 2K MAC Address table. The unit also provides a wire-speed transfer of packets without a risk of packet loss. The unit's Flow Control function is set to provide fast and reliable data transfer at default. All RJ-45 copper interfaces on the unit support 10/100Mbps Auto-Negotiation for a state-of-the-art detection of speed. These interfaces operate through RJ-45 Category 3, 4, 5, 5e or 6 cables. The standard Auto-MDI/MDI-X support detects the type of connection to Ethernet devices without requiring specialty cables.

The ISW-504PT Power over Ethernet Industrial Switch from Planet Technology has been crafted to make connection simple in tough industrial environments. This unit has the ability to transmit power and data over one Ethernet cable to remote PoE devices. The unit features 5 10/100Mbps copper ports with a 4-Port IEEE 802.3af Power over Ethernet inject interfaces. This unit comes in a durable IP-30 rugged case, which makes it ideal for industries. The ISW-504PT also provides to 15.4Watts power per port for IEEE 802.3af remote powered devices, which makes it the unit of choice when seeking to install wireless service or surveillance in environments ranging from 40 to 75 degrees Celcius.
