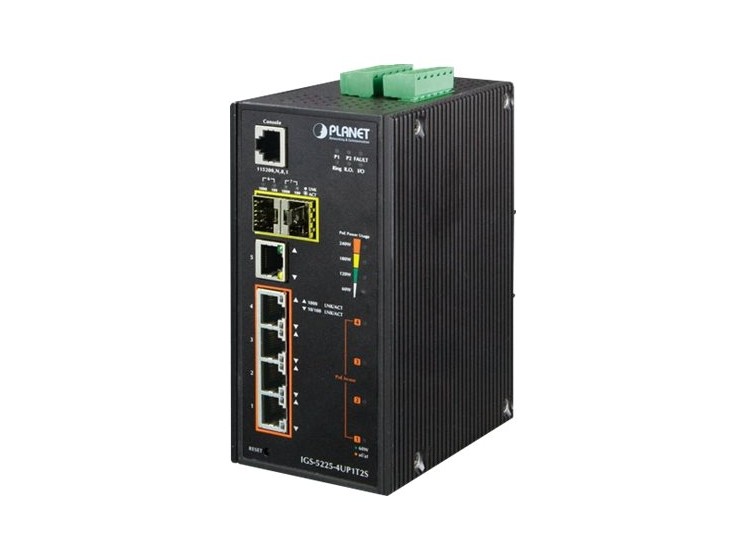

PLANET IGS-5225-4UP1T2S - Switch - L2+ - Managed - 1 x 10/100/1000 + 4 x 10/100/1000 (UPOE) + 2 x SFP - DIN rail mountable, wall-mountable - UPOE (240 W) - DC power

PLANET Industrial 4-port Gigabit Ultra PoE Switch, IGS-5225-4UP1T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-4UP1T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space.

• 802.3bt - power over 4-pair UTP system
• Advanced PoE power output mode management
• Convenient and Smart ONVIF devices with detection feature
• Intelligent alive check for powered device
• PoE schedule for energy saving
• Scheduled power recycling
• Redundant ring, fast recovery for critical network applications
• SMTP/SNMP trap event alert

• 802.3bt - power over 4-pair UTP system
  The IGS-5225-4UP1T2S Ultra PoE solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over 2-pair twisted UTP - be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 72 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, the IGS-5225-4UP1T2S is able to deliver per port up to 72 watts of power to each remote PoE compliant powered device (PD).
• Advanced PoE power output mode management
  To meet the demand of various powered devices consuming stable PoE power, the IGS-5225-4UP1T2S provides three different PoE power output modes for selection.
• Convenient and Smart ONVIF devices with detection feature
  PLANET has newly developed an awesome feature - ONVIF Support - which is specifically designed for co-operating with Video IP Surveillances. From the IGS-5225-4UP1T2S GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images into switch and allows for deploying location of surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance's information and online/offline status, and also allows PoE reboot control from GUI.
• Intelligent alive check for powered device
  The IGS-5225-4UP1T2S PoE Switch can be configured to monitor connected PD's status in real time via ping action. Once the PD stops working and responding, the IGS-5225-4UP1T2S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator's management burden.
• PoE schedule for energy saving
  Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-4UP1T2S can effectively control the power supply besides its capability of giving high watts power. The built-in "PoE schedule" function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
• Scheduled power recycling
  The IGS-5225-4UP1T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
• Redundant ring, fast recovery for critical network applications
  The IGS-5225-4UP1T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer's industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.
• SMTP/SNMP trap event alert
  The IGS-5225-4UP1T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

PLANET Industrial 4-port Gigabit Ultra PoE Switch, IGS-5225-4UP1T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-4UP1T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
