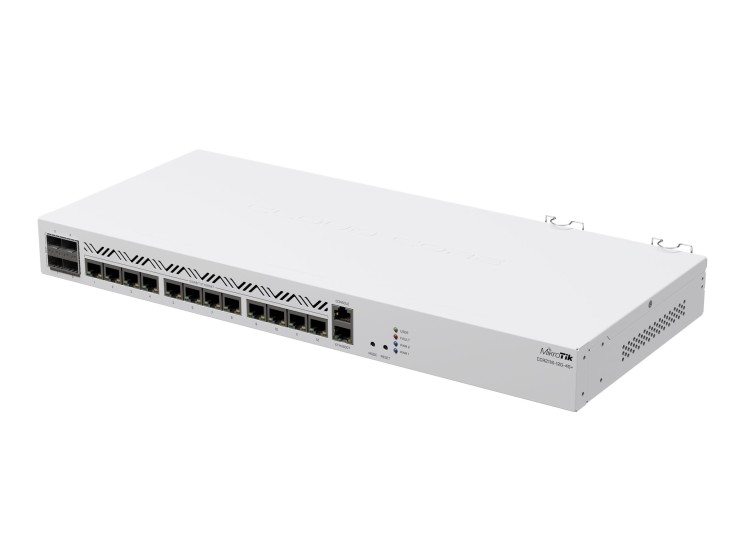

MikroTik Cloud Core Router CCR2116-12G-4S+ - Router 10GbE - rack-mountable

The CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother - the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then it has Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If you look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.
If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G networking.
CCR2116-12G-4S+: technology tested by time, built for the future.

• Powerful Annapurna Labs processor with a clock speed of 2 GHz
• Can achieve routing throughput of 3212.2 Kpps
• Includes 12 Gigabit Ethernet ports and 4 x 10Gb Ethernet ports
• Built-in temperature sensor for enhanced monitoring
• Rack mounting kit included for flexible installation

• Reliable performance
  With 16 GB of DDR4 RAM and a robust Annapurna Labs processor, the router can efficiently manage high data throughput and connectivity demands.
• Extensive connectivity options
  The four 10Gb Ethernet ports combined with twelve Gigabit Ethernet ports provide versatility and scalability for various network configurations.
• Effective thermal management
  Featuring four fans and a built-in temperature sensor, the router maintains consistent performance by regulating its internal temperature.
• Robust power options
  Operational power redundancy and a dual internal power supply design enhance reliability in mission-critical networking environments.
• Compliance and longevity
  Meeting IC, RoHS, and EAC standards ensures the router's safe operation and durability, with a mean time before failure of 200,000 hours.
