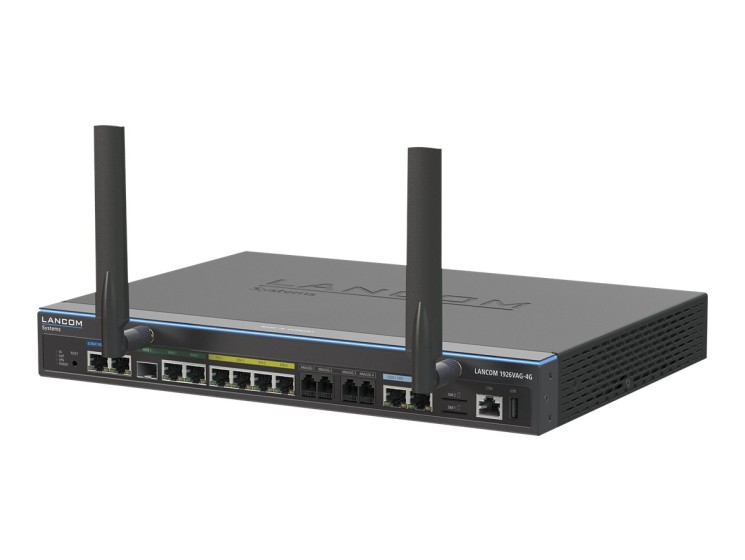

LANCOM 1926VAG-4G - Router - ISDN/WWAN/DSL 4-port switch - 1GbE, PPP - WAN ports: 2 - VoIP phone adapter

This high-end router for the first time combines two VDSL Super Vectoring modems in just one device for a bandwidth of 2x 300 Mbps when using both connections at the same time. The router alternatively operates on a G.fast gigabit connection. The additional LTE Advanced module is an Internet backup that guarantees highest availability. Equipped with state-of-the-art SD-WAN technology for secure and automated VPN site connectivity, the LANCOM 1926VAG-4G is the top-class solution for mission-critical applications in medium-sized and large branch infrastructures.

• Two VDSL Super Vectoring modems (operable in parallel), alternative use of a modem at a G.fast connection, 1x SFP/TP, 1x WAN Ethernet and 1x Dual-SIM LTE Advanced for up to 300 Mbps
• Load balancing for the active/active operation of several Internet access connections and maximization of the available bandwidth
• 25 simultaneous IPsec VPN connections (100 optional)
• Network virtualization with up to 64 networks on one device (ARF)
• SD-WAN - automatic VPN and VLAN configuration via the LANCOM Management Cloud
• Professional telephony features thanks to integrated LANCOM VCM (Voice Call Manager) / SBC (session border controller)
• Full-metal housing for mounting in a 19" rack and integrated 230V power supply

• Multi-WAN and backup
  The LANCOM 1926 series are the first routers on the market with two integrated VDSL Super Vectoring modems for a total of 2x 300 Mbps. Alternatively, one of the two modems can be used to connect via G.fast at up to 1,000 Mbps. Also, their SFP port allows them to operate directly at high-speed fiber-optic connections. They can also operate with any external DSL or cable modem via WAN Ethernet. The LTE Advanced modem integrated into the LANCOM 1926VAG-4G ensures fast cellular access at up to 300 Mbps, and features two SIM card slots. This makes it ideal for intelligent backup scenarios.
• Load balancing
  The LANCOM 1926VAG-4G allows multiple Internet access connections to be operated in parallel, with load balancing ensuring that the available bandwidth is used to maximum effect. With the combined operation of 2x VDSL Super Vectoring, fiber optic and dual-SIM cellular communications, it provides unsurpassed availability and bandwidth. The LANCOM 1926VAG-4G thus offers the ultimate in future proofing for performance-hungry SD-WAN scenarios in mission-critical environments.
• Advanced routing and forwarding
  The LANCOM 1926VAG-4G provides up to 64 securely isolated IP contexts, each of which has its own separate routing. This is an elegant way of operating IP applications with one central router and keeping the different communication channels securely isolated from one another.
• Next-generation SD-WAN: High Scalability VPN (HSVPN)
  The LANCOM 1926VAG-4G supports High Scalability VPN (HSVPN). The ongoing rise of digitalization, greater diversity of applications, and higher data volumes demand powerful, state-of-the-art networks. High Scalability VPN significantly improves the extensibility and efficiency of your architecture. Where previously each individual application required a separate VPN tunnel, HSVPN bundles any number of networks into a single VPN tunnel and transports them collectively to the remote site - with each network remaining secure and strictly separated from the others. The advantage for your business: Considerably fewer VPN tunnels are required, and recovery times are much faster in a failover event.
• Professional telephony with the LANCOM VCM (Voice Call Manager)
  The LANCOM Voice Call Manager is already integrated into the LANCOM 1926VAG-4G and provides a wide range of telephony functions. It manages all aspects of the telephony and controls all of the router-based PBX functions for SIP, ISDN and analog components. Furthermore, it enables the easy integration of DECT telephones by auto provisioning with the LANCOM DECT 510 IP base station.
• Integrated session border controller
  The LANCOM Voice Call Manager acts as a session border controller: This ensures that external (unsecure) and internal (secure) networks are kept separate. Also, voice packets are given priority (Quality of Service) thanks to bandwidth reservation, which ensures a higher quality of calls. In addition, the VCM as a SIP proxy enables the professional management of signaling and voice data for high security in the setup, implementation and teardown of telephone conversations, including any protocol conversion by means of transcoding.
• Premium full-metal housing
  The LANCOM 1926VAG-4G comes in a high-quality full-metal housing with integrated 230V power supply. Thanks to the mounting system, it is easy to install in a 19" rack - with connection ports redirected to the front, it is quick and easy to work with.
