HPE Smart Array P816i-a SR Gen10 - Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 12Gb/s - RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for ProLiant DL345 Gen10, DL360 Gen10, DL380 Gen10

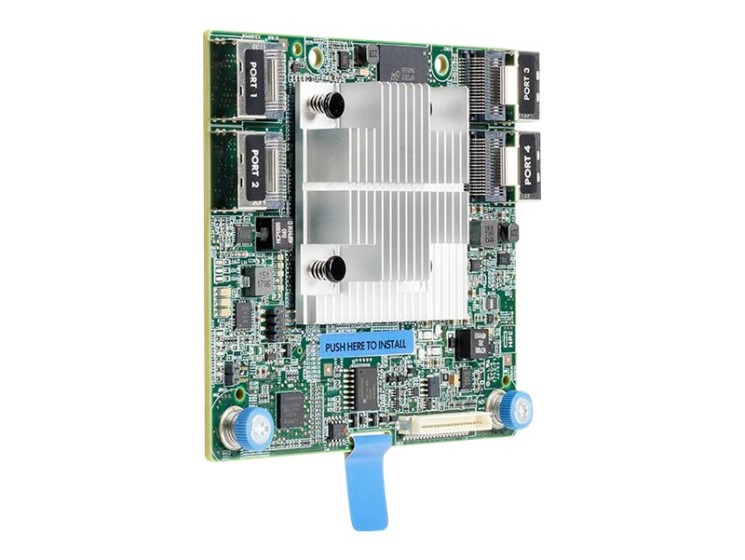

The HPE Smart Array P816i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has 16 internal SAS lanes, allowing connection of up to 16 SAS or SATA drives without need for the SAS Expander Card providing point to point connectivity to SSDs for lower latency. It also offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption and accelerates access to data on HDDs with the HPE Smart Array SR SmartCache license which comes standard with this controller. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. T

• Storage interface (SAS/SATA)
• 4 GB Flash-Backed Write Cache (FBWC)
• PCI Express 3.0 x8 link
• RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
• Mixed Mode(RAID logic drives and HBA physical drives simultaneously)
• Legacy and UEFI boot operation
• UEFI System Utilities (storage configuration)
• Up to 238 physical drives
• Up to 64 logical drives
• HPE Smart Array SR SmartCache (license included)
• HPE SSD Smart Path
• Rapid Parity Initialization (RPI)
• Rapid rebuild
• Drive Sanitize
• Performance Optimization-Degraded Reads and Read Coalescing
• Power efficiency
• Seamless upgrades from HPE Smart Array S-class and E-class controllers
• FIPS 140-2 Level 1 Implementation Under

• Enhanced storage capability
  With support for up to 16 channels, the HPE Smart Array P816i-a SR Gen10 storage controller significantly expands your system's storage capacity, allowing for a more flexible and scalable storage solution.
• High-speed performance
  Boasting a data transfer rate of 12 Gbit/s and compatibility with SATA 6 Gb/s / SAS 12 Gb/s interfaces, this storage controller ensures swift and efficient data handling, making it suitable for demanding storage environments.
• Reliable data protection
  The inclusion of Flash Backed Write Cache (FBWC) provides an added layer of data protection, ensuring that your data remains safe in the event of a power loss or system failure.

The HPE Smart Array P816i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has 16 internal SAS lanes, allowing connection of up to 16 SAS or SATA drives without need for the SAS Expander Card providing point to point connectivity to SSDs for lower latency. It also offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption and accelerates access to data on HDDs with the HPE Smart Array SR SmartCache license which comes standard with this controller. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. T
