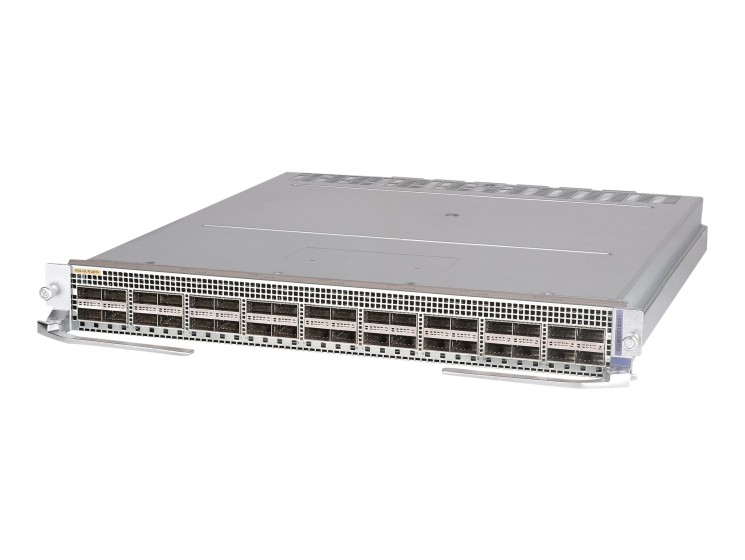

HPE FlexFabric 12900E 36-Port 40GbE QSFP+ Type X Module - Expansion module - 40 Gigabit QSFP+ x 36 - for FlexFabric 12904E Switch Chassis, 12908E Switch Chassis

The HPE FlexFabric 12900E switch series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density GbE, 10GbE, 40GbE, 100GbE and 400GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE FlexFabric 12900E switch supports a full Layer 2 and 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times.

• Introducing next-generation, high-performance 400G/100G H2 modules with improved features ideal for telcos, cloud service providers and large enterprises
• High-density 10GbE, 40GbE, 100GbE and 400GbE connectivity with non-blocking wirespeed performance
• HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer
• Non-blocking, lossless Clos architecture
• VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments

• Modern, scalable and distributed architecture
  The HPE FlexFabric 12900E switch series provides non-blocking, lossless Clos architecture with VOQs and large buffers with the flexibility and scalability for future growth. Distributed architecture with separation of data and control planes delivers enhanced fault tolerance and facilitates continuous operation and zero service disruption during planned or unplanned control-plane events.
• High-performance switch series with broad interface options
  The HPE FlexFabric 12900E switch series lets you build Layer 2 and Layer 3 fabrics which are flexible, resilient, and scalable with VxLAN support and subsecond convergence times. High-density 1GbE, 10GbE, 40GbE, 100GbE and 400GbE interface connectivity with up to 16 interface module slots scales up to 768 1GbE/10GbE/40GbE, 576 100GbE ports and 192 400GbE ports.
• Optimized for the next-generation data center
  The HPE FlexFabric 12900E switch series lets you build Layer 2 fabrics which are flexible, resilient, and scalable with VxLAN, TRILL and/or Hewlett Packard Enterprise IRF. Type X modules that offer automation capabilities with HPE IMC Orchestrator and Analyzer, streaming telemetry support with Precision Timing Protocol (PTP) and up to 16K multicast group support. Enhanced HPE Multitenant Device Context (MDC) for multi-tenancy giving you the ability to virtualize a physical switch into multiple logical device. Network and storage convergence with support for Fiber Channel over Ethernet (FCoE) and Data Center Bridging (DCB) protocols includes IEEE 802.1Qaz Data Center Bridging Exchange (DCBX), Enhanced Transmission Selection (ETS), and IEEE 802.1Qbb Priority Flow Control (PFC).
• Enterprise-class availability and resiliency with broad Layer 2 and Layers 3 feature set
  Intelligent Resilient Fabric (IRF) creates virtual resilient switching fabrics where two HPE FlexFabric 12900E switch series perform as a single Layer 2 switch and Layer 3 router that can be attached using standard LACP for automatic load balancing and high availability. The switch series offers hot-swappable modules and redundant load-sharing fabrics, management, power and high-speed fan assemblies which provides you with optimum network performance and availability while simplifying your network operations.

The HPE FlexFabric 12900E switch series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density GbE, 10GbE, 40GbE, 100GbE and 400GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE FlexFabric 12900E switch supports a full Layer 2 and 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times.
