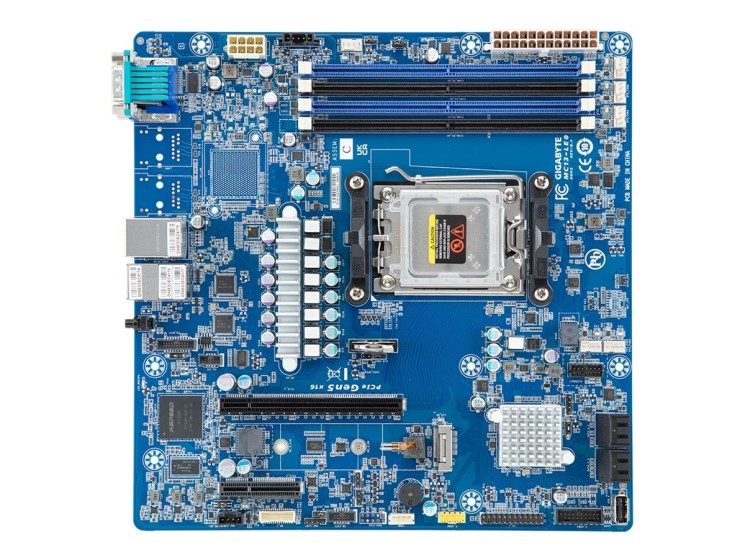

Gigabyte MC13-LE0 - 1.X/3.X - motherboard - micro ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics

AMD Ryzen 7000 series processors deliver value and performance, and they are being used beyond a traditional desktop PC at home or at work. Instead, they are a perfect fit in GIGABYTE servers, and they will be used in workspaces, telecommunications cabinets, and dedicated hosting applications to name a few. These unique GIGABYTE servers take a consumer processor platform and surround it by enterprise rich features. Since it is a server, there is an onboard Baseboard Management Controller (BMC) for remote monitoring and management. Adding to the value proposition, GIGABYTE provides its won software for out-of-band management without an additional license fee.

• Dual Channel ECC / Non-ECC Unbuffered DDR5, 4 DIMMs
• 2 x 1GbE LAN ports (Intel I210)
• 1 x Dedicated management port
• BMC ASPEED AST2600
• PCIe Gen5 Ready x16 slot and M.2 slot
• 4 x SATA 6 Gb/s ports

• Memory support
  4 unbuffered DIMMs memory socket with 2-Channel. ECC/Non-ECC; DDR5 support. 5200 MHz for 1DPC; 3600 MHz for 2DPC.
• PCIe 5.0 ready design
  MC13-LE0 and MC13-LE1 equip several components to ensure the PCIe 5.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 5.0. There will be no compromised on PCIe 5.0 performance on PCIe and M.2 interface.
• Hardware security
  For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
