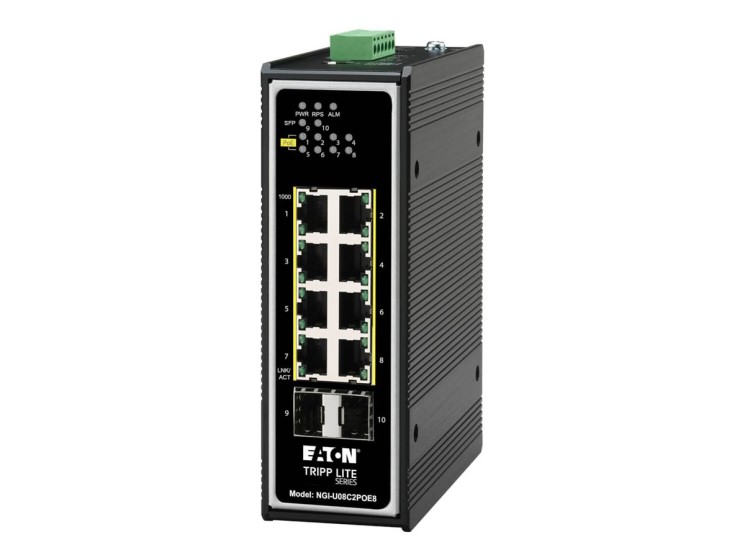

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount - Switch - unmanaged - 8 x 10/100/1000 + 2 x 1000Base-X SFP (uplink) - DIN rail mountable - PoE+ (240 W) - DC power - TAA

This Tripp Lite network switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Eight auto-negotiating 10/100/1000 Mbps PoE (Power over Ethernet) ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this unmanaged switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 120W at 24VDC or 240W at 48VDC.
The NGI-U08C2POE8 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Because it is an unmanaged switch, the NGI-U08C2POE8 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2POE8 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. A DIP switch supports an alarm relay output in which you can connect an alarm light or buzzer.
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24 - 57VDC terminal block supplies power input.
The NGI-U08C2POE8 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 20 Gbps switching capacity for high-speed data transmission
• 8 PoE+ ports and 2 GbE SFP slots for flexible network connections
• Operates in a wide temperature range, from -10°C to 60°C, suitable for harsh industrial environments
• 240 W PoE budget to power multiple devices simultaneously
• Compliant with multiple IEEE standards, ensuring broad compatibility and reliability

• Robust performance
  With a switching capacity of 20 Gbps, this Eaton Tripp Lite series switch ensures efficient data flow and management across networks, making it suitable for industrial environments where performance is critical.
• Enhanced connectivity
  Equipped with 8 PoE+ ports and 2 GbE SFP slots, this unmanaged industrial Gigabit Ethernet switch offers versatile connectivity options for a wide range of devices and applications, supporting both power and data over a single cable.
• Durable design
  Designed for the demands of industrial environments, this switch features a metal housing and operates within a wide temperature range, ensuring reliability and durability in harsh conditions.
• Efficient power management
  With a total PoE budget of 240 W, this switch can power multiple devices efficiently, making it a suitable choice for networks that include PoE-powered cameras, phones, and access points.

This Tripp Lite network switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Eight auto-negotiating 10/100/1000 Mbps PoE (Power over Ethernet) ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
