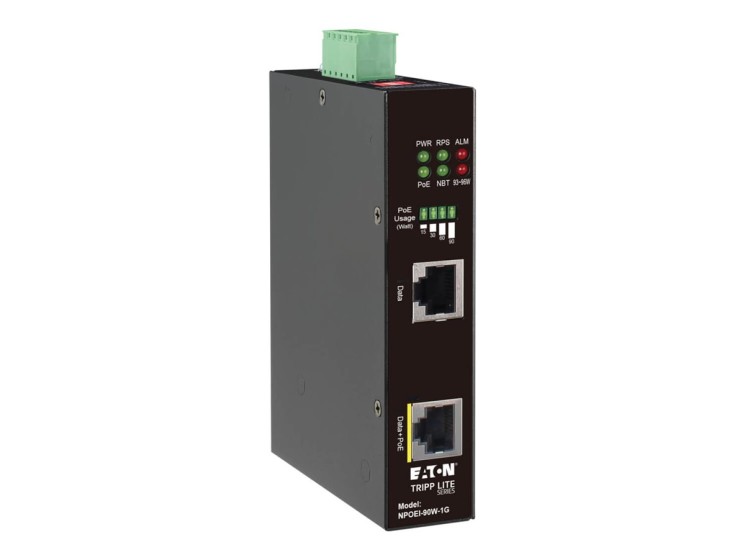

Eaton Tripp Lite Series Industrial Gigabit Ethernet PoE injector, 90W PoE++, 802.3bt, Midspan, -40C to +75C, IP30 housing, Dual 24~57VDC , DIN rail, 1 Port - PoE injector (DIN rail mountable) - AC 100-240 V - 90 Watt - black

Add a surveillance camera, wireless access point, VoIP phone, outdoor kiosk, smart lights or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE++ injector to send 90W of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. It is recommended for outdoor applications, such as LED lights, security cameras and heater elements.
This compact PoE plus injector delivers 10/100/1000 Mbps (1 Gbps) of data and up to 90W of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.
The NPOEI-90W-1G delivers both power and data to any IEEE 802.3af (PoE), 802.3at (PoE+) or 802.3bt (4PPoE) device up to 328 feet (100 meters) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.
No configuration or software is required to add the NPOEI-90W-1G to your LAN (local area network). Just connect your switch or Ethernet network to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 PoE port using existing Cat5e/6/6a cable. The included terminal block offers dual primary and redundant power inputs. DIP switches and LEDs help you find the right settings for your application. The NPOEI-90W-1G automatically detects which connected devices are compatible.
A DIN rail kit is included for mounting the IP30-rated metal housing on a well-grounded corrosion-free rail. The fanless design is ideal for silent operation.

• Operates in extreme temperatures from -40C to +75C
• Supports high-power devices with up to 90 W PoE++
• Compliant with multiple standards including FCC, IP30, and RoHS
• Easy installation with DIN rail mountable design
• Designed for Gigabit Ethernet for fast and reliable network performance

• Robust environmental adaptability
  Designed to operate in extreme conditions, this PoE injector functions flawlessly in temperatures ranging from -40C to +75C, ensuring reliable performance in any industrial setting.
• Comprehensive compliance
  Meets a wide array of standards including FCC, IP30, REACH, and RoHS, ensuring it adheres to strict regulatory requirements for safety and environmental impact.
• High power output
  Delivers up to 90 W of power over Ethernet, accommodating devices that require high power input such as advanced surveillance cameras and wireless access points.

Add a surveillance camera, wireless access point, VoIP phone, outdoor kiosk, smart lights or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE++ injector to send 90W of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. It is recommended for outdoor applications, such as LED lights, security cameras and heater elements.
