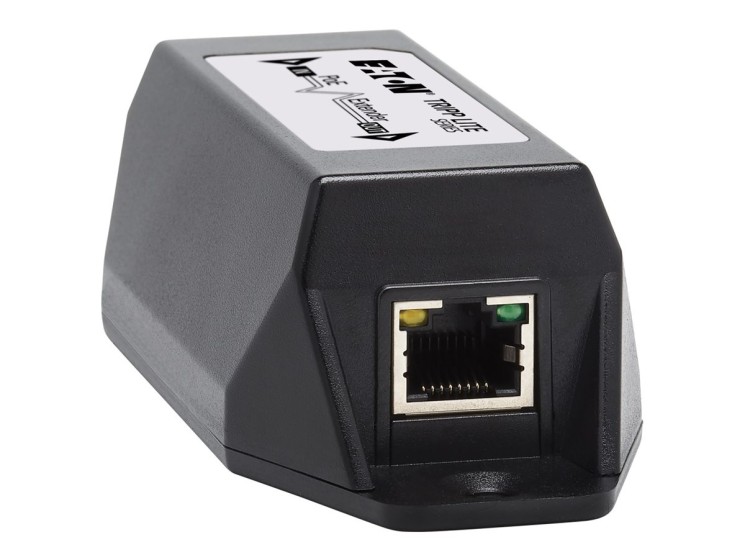

Eaton Tripp Lite Series Gigabit Ethernet PoE/PoE+ Extender - Cat5e/6/6a, RJ45, IEEE 802.3at/af, 30W, 1 Port, 328 ft. (100 m) - Network extender - 1GbE - 1000Base-T, 100Base-TX, 10Base-T - up to 100 m

This single-port connector allows you to extend the connection between your powered source device, such as a PoE (Power over Ethernet) switch, and a remote PoE device an extra 328 feet (100 meters). In addition, by cascading as many as four NPOE-EXT-1G30 extenders, you can extend that connection as far as 1640 feet (500 meters) total. Just connect the extender between two sections of Cat5e/6/6a cable up to 328 feet each.
The compact PoE/PoE+ extender delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables, eliminating the need to install new AC power lines and electrical outlets. This cost-effective extender sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. It also automatically detects PoE/PoE+ equipment and protects it from being damaged by incorrect installation.
Because this extender supports PoE, it can supply the power to operate compatible IEEE 802.3at/af PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. It supports half/full-duplex 1 Gbps communication for sending and receiving data simultaneously, and protects your PoE device against short circuits and overloads.
No configuration or software is required to add the NPOE-EXT-1G30 to your LAN. Just connect your switch or network jack and your PoE/PoE+ device to the shielded RJ45 Power + Data ports using existing Cat5e/6/6a cable. LEDs indicate the unit is receiving power and is ready to transmit data.
Mounting holes are featured for installing the extender on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

• Extends Ethernet connectivity up to 328 ft. (100 m) for increased network reach
• Supports PoE and PoE+ standards to power devices through Ethernet cables
• Compatible with a wide range of Ethernet standards, including Gigabit Ethernet
• Operates effectively in a wide range of temperatures and humidity levels
• Plug-and-play functionality paired with a wall-mountable design for easy installation

• Extended reach
  The Gigabit Ethernet PoE/PoE+ Extender enables a significant extension of network reach, pushing the boundaries up to 328 ft. (100 m) beyond the standard limits of Ethernet cabling. This feature ensures seamless connectivity across larger spaces without the need for additional switches or hardware.
• Efficient power distribution
  With support for both PoE and PoE+ standards, this device delivers up to 30 W of power over Ethernet cables, enabling the supply of power to connected devices such as surveillance cameras and wireless access points without the need for separate power sources.
• Versatile connectivity
  Designed to support a wide range of Ethernet standards, including Ethernet 1000Base-T, 100Base-TX, and 10Base-T, this extender is equipped to handle various networking needs, ensuring compatibility with a broad array of devices and network architectures.
• Robust environmental adaptability
  Engineered to operate reliably in a diverse range of environmental conditions, this extender maintains performance across operating temperatures from -10°C to 45°C and humidity ranges from 0 to 90% (non-condensing), making it suitable for deployment in challenging physical environments.
• Simple installation
  This device champions ease of use with its Plug-and-Play functionality, eliminating the need for complex configuration processes. Additionally, its wall-mountable design allows for flexible installation options, further simplifying the setup and integration into existing network infrastructures.
