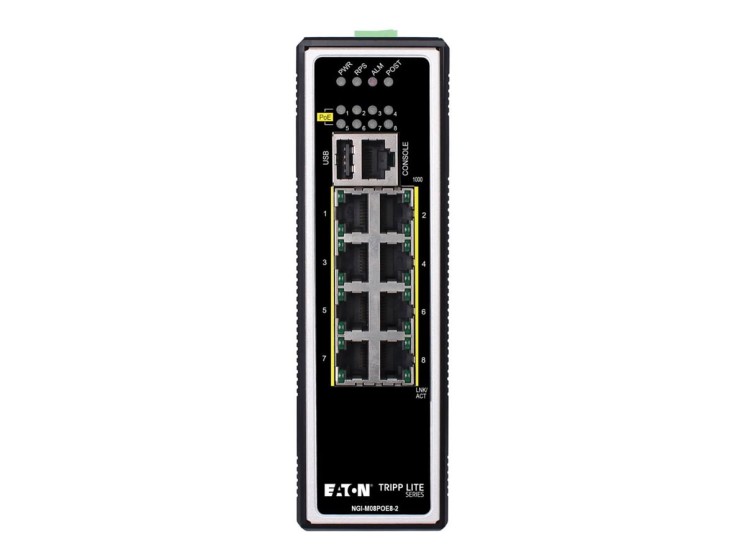

Eaton Tripp Lite series 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 1 Gbps, PoE+ 30W, -40° to 75°C, DIN Mount - Switch - Managed - 8 x 10/100/1000 (PoE+) - DIN rail mountable - PoE+ (240 W) - DC power - TAA Compliant

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the NGI-M08POE8-L2 is powered on and which Ethernet ports are showing activity.
This managed switch features eight PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-M08POE8-L2 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.
The compact NGI-M08POE8-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, power/utility, security and water/wastewater applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
The NGI-M08POE8-L2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection.
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices.
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-M08POE8-L2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 16 Gbps switching capacity for high-performance data transmission
• Operates efficiently in extreme temperatures from -40° to 75°C
• 8 PoE+ ports facilitate power and data over a single cable
• Advanced network management for secure, optimized performance
• Fanless design for silent and energy-efficient operation

• Robust performance
  Equipped with a 16 Gbps switching capacity, this 8-Port Managed Industrial Gigabit Ethernet Switch ensures efficient data handling for high-demand applications, making it ideal for complex industrial environments.
• Durable design
  Designed to withstand extreme temperatures ranging from -40° to 75°C and housed in a sturdy metal case, this switch is built for reliability in challenging conditions.
• Enhanced connectivity
  With 8 PoE+ ports, this switch supports power and data transmission over a single cable, providing a streamlined networking solution that simplifies the installation of devices like IP cameras and wireless access points.
• Intelligent management
  Features such as DHCP snooping, MAC address learning, and SNMP statistic counters offer advanced network management capabilities, ensuring secure and optimized network performance.
• Energy-efficient operation
  The fanless design not only ensures silent operation but also reduces energy consumption, making it an eco-friendly choice for any setup.

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the NGI-M08POE8-L2 is powered on and which Ethernet ports are showing activity.
