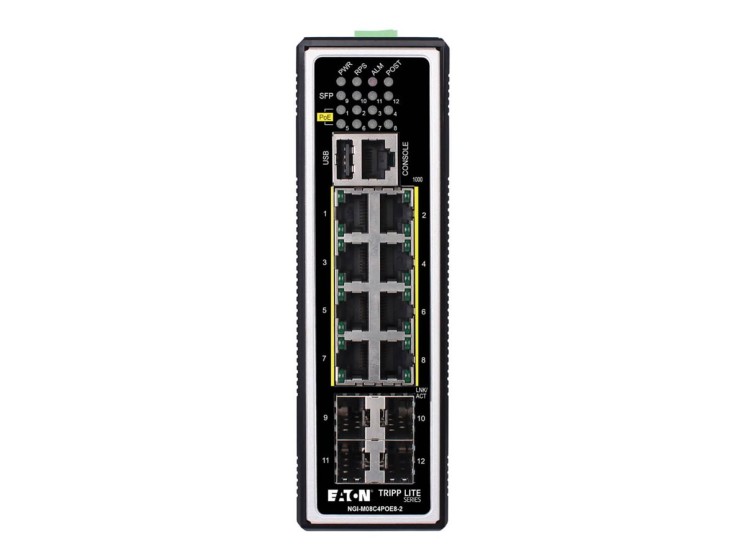

Eaton Tripp Lite series 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 1 Gbps, PoE+ 30W, 4 GbE SFP Ports, -40° to 75°C, DIN Mount - Switch - Managed - 8 x 10/100/1000 (PoE+) + 1 x USB 2.0 + 4 x 1000Base-X SFP (uplink) - DIN rail mountable -

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C4POE8-2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
This managed switch features eight PoE ports capable of powering compatible PoE devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-M08C4POE8-2 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.
The compact NGI-M08C4POE8-2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, power/utility, security, mining, factory and warehouse applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
The NGI-M08C4POE8-2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection.
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices.
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-M08C4POE8-2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• Operates in extreme temperatures from -40° to 75°C
• 8 PoE+ ports with a 240 W total power budget
• 4 GbE SFP ports for flexible uplink options
• Fanless design in a durable metal housing
• Comprehensive network management and security features

• Robust environmental tolerance
  Designed to operate in extreme conditions, this switch can handle operating temperatures ranging from -40° to 75°C and humidity levels from 5 to 95% (non-condensing), ensuring reliable performance in any industrial environment.
• Versatile connectivity options
  With 8 RJ-45 ports for 10/100/1000 Base-T (PoE), 1 USB 2.0 port, and 4 GbE SFP ports, this switch offers a wide range of connection possibilities, catering to diverse networking needs.
• Enhanced power delivery
  Supporting PoE+ with a total power budget of 240 W, it enables the delivery of power and data over a single cable to devices like IP cameras and VoIP phones, simplifying the network infrastructure.
• Advanced network management
  Features such as DHCP snooping, MAC address learning, and SNMP statistic counters provide sophisticated management capabilities, allowing for efficient network monitoring and control.
• Durable and secure design
  The metal housing and fanless design ensure durability and reliable operation without noise. Compliance with multiple IEEE standards and security features like storm control and flow control safeguard the network integrity.

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C4POE8-2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
