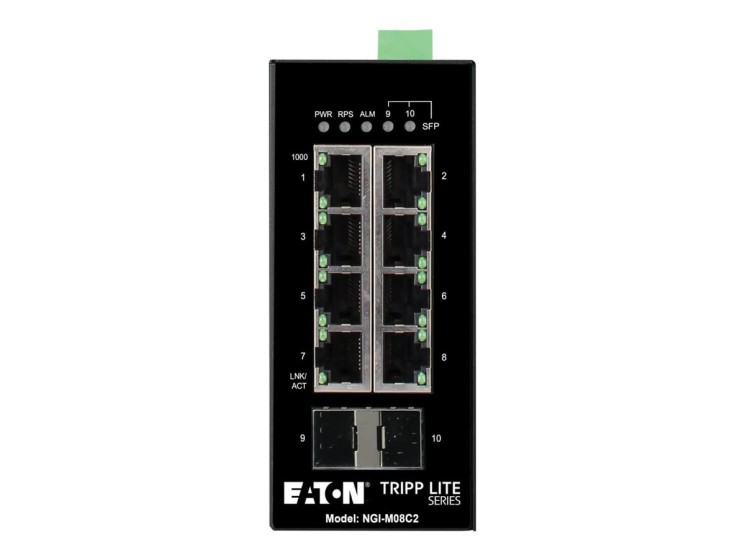

Eaton Tripp Lite series 8-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount - Switch - Managed - 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) - DIN rail mountable - DC power - TAA Compliant

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
The compact NGI-M08C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
The NGI-M08C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-48VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-M08C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 20 Gbps switching capacity for high-speed data transmission
• Operates in extreme temperatures from -40° to 75°C, suitable for industrial environments
• 8 RJ-45 ports and 2 GbE SFP slots for versatile connectivity
• Fanless design with metal housing for durable and silent operation
• Supports advanced network management features for enhanced security and performance

• Robust performance
  With a switching capacity of 20 Gbps, this Ethernet switch ensures efficient handling of network traffic, minimizing bottlenecks for smooth and reliable data transmission.
• Durable design
  Encased in a sturdy metal housing and capable of operating in extreme temperatures ranging from -40° to 75°C, this switch is built to withstand harsh industrial environments.
• Enhanced connectivity
  Equipped with 8 RJ-45 ports for 10/100/1000 Base-T connections and 2 GbE SFP slots, this switch offers flexible connectivity options for a variety of network configurations.
• Intelligent management
  Features such as DHCP snooping, MAC address learning, and SNMP statistic counters allow for efficient network management, ensuring optimal performance and security.
• Eco-friendly operation
  This fanless switch operates quietly and efficiently, with IEEE 802.3az compliance for ENERGY STAR Efficient Ethernet, reducing operational costs and environmental impact.

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
