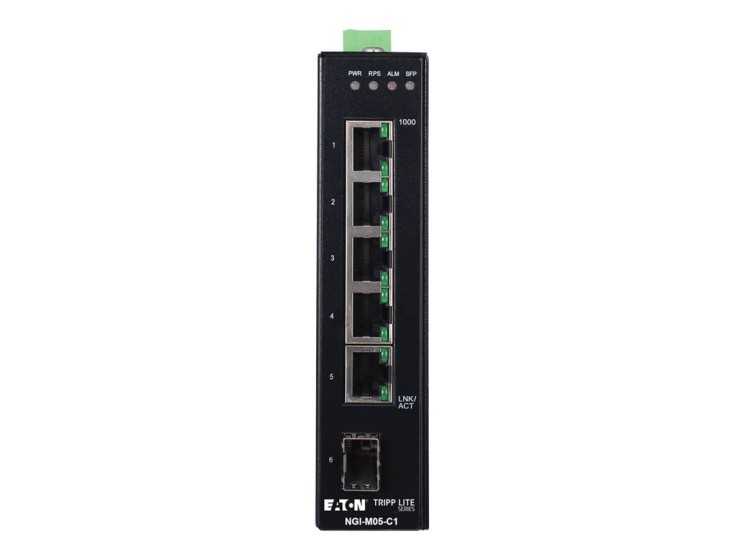

Eaton Tripp Lite series 5-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, GbE SFP Slot, -40° to 75°C, DIN Mount - Switch - Managed - 5 x 10/100/1000 + 1 x Gigabit SFP (uplink) - DIN rail mountable - DC power - TAA Compliant

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M05-C1 also features a GbE SFP slot for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
The compact NGI-M05-C1 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
The NGI-M05-C1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-M05-C1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 12 Gbps switching capacity for efficient data transmission
• Operates in extreme temperatures from -40° to 75°C
• Five RJ-45 ports and one 1000Base-X SFP slot
• Comprehensive network management and security features
• Fanless, energy-efficient design with metal housing

• Efficient performance
  With a switching capacity of 12 Gbps, this Ethernet switch ensures efficient handling of network traffic, supporting seamless data transmission and high-speed connectivity for all connected devices.
• Durable design
  Engineered for extreme conditions, this switch operates reliably in temperatures ranging from -40° to 75°C, making it ideal for industrial environments where temperature fluctuations are common.
• Versatile connectivity
  Featuring five RJ-45 ports for 10/100/1000 Base-T connections and one SFP slot for 1000Base-X uplink, this switch offers flexible networking options to meet various deployment requirements.
• Advanced network management
  Equipped with features like DHCP snooping, MAC address learning, and SNMP statistic counter, this switch provides comprehensive tools for enhanced network control and security.
• Eco-friendly operation
  The fanless design not only ensures silent operation but also contributes to energy efficiency, while compliance with standards like IEEE 802.3az further underscores its eco-friendly profile.

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M05-C1 also features a GbE SFP slot for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
