Eaton Tripp Lite series 5-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, -10° to 60°C, DIN Mount - Switch - smart - 5 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) - DIN rail mountable - PoE+ (120

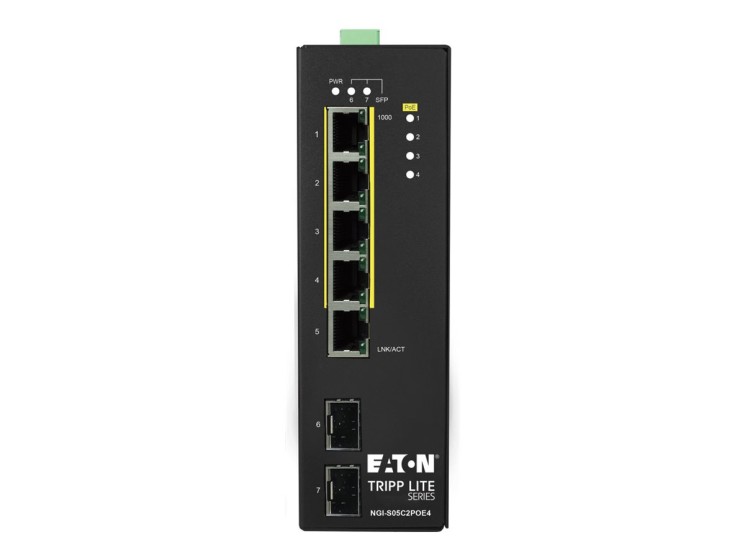

This Lite Managed switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
This smart switch features four PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-S05C2POE4 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.
The hardened NGI-S05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-14 to 140 degrees Fahrenheit).
The Lite Managed switch's user-friendly cloud-based Lamungan platform helps you manage your network via web interface or mobile app. Three different features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme - red (critical), yellow (alert), green (normal) - keeps you up to date on any network irregularities.
The NGI-S05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-S05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 14 Gbps switching capacity for high-speed network performance
• 5 PoE+ ports and 2 SFP uplink slots for versatile connectivity
• Operates in temperatures from -10° to 60°C, suitable for industrial environments
• Fanless design for silent operation and energy efficiency
• 120 W PoE budget to power multiple devices directly through network cables

• Robust performance
  With a switching capacity of 14 Gbps, this Ethernet switch ensures efficient handling of network traffic, supporting seamless data transmission and high-speed connectivity for all connected devices.
• Enhanced connectivity
  Equipped with 5 PoE+ ports and 2 SFP uplink slots, this switch offers flexible connection options for a wide range of devices, including high-power PoE devices and fiber optic connections, facilitating a versatile network setup.
• Durable design
  Designed for industrial environments, this switch operates reliably in a wide temperature range from -10° to 60°C and is housed in a robust metal casing, ensuring long-term durability and stability in challenging conditions.
• Intelligent network management
  Features such as DHCP snooping, MAC address learning, and storm control, along with advanced management via RMON and SNMP statistic counters, provide comprehensive control and monitoring capabilities for optimized network performance.
• Power and efficiency
  With a total PoE budget of 120 W, this switch can power multiple devices over the network, reducing the need for additional power sources and cables, while its fanless design ensures silent operation and reduced energy consumption.

This Lite Managed switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
