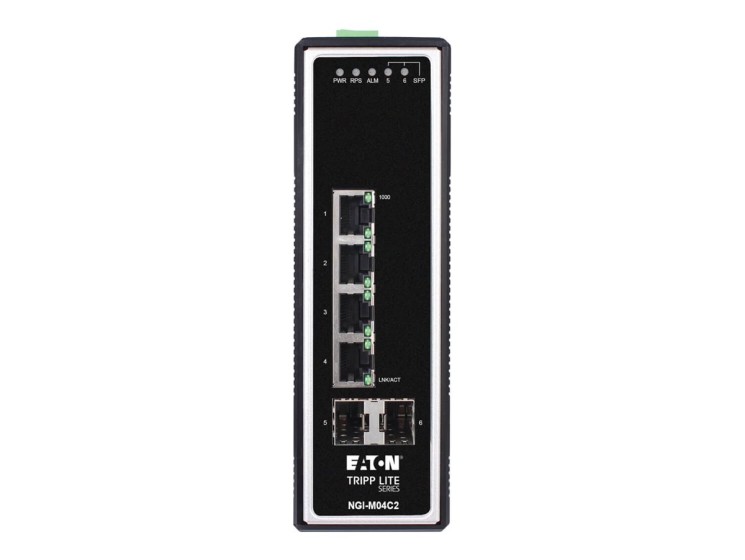

Eaton Tripp Lite series 4-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount - Switch - Managed - 4 x 10/100/1000 + 2 x Gigabit SFP (uplink) - DIN rail mountable - DC power - TAA Compliant

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M04C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
The compact NGI-M04C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
The NGI-M04C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
The NGI-M04C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• 12 Gbps switching capacity for high-speed data transmission
• Operates in temperatures from -40° to 75°C, suitable for extreme environments
• Four RJ-45 and two SFP ports for versatile network configurations
• Fanless, metal housing design for durability and silent operation
• Supports advanced network management features for improved security and control

• Robust performance
  With a switching capacity of 12 Gbps, this Ethernet switch ensures efficient handling of network traffic, maintaining high-speed data transmission for demanding applications.
• Wide temperature range
  Designed to operate in extreme conditions, this switch functions flawlessly in temperatures ranging from -40° to 75°C, making it ideal for industrial environments.
• Versatile connectivity
  Equipped with four 10/100/1000 Base-T ports and two 1000Base-X SFP slots, this switch offers flexible connection options for a variety of network configurations.
• Durable design
  Housed in a rugged metal case and engineered without fans, this switch is built to last in harsh industrial settings while ensuring silent operation.
• Advanced network management
  Features such as DHCP snooping, MAC address learning, and SNMP statistic counters provide enhanced control and security for your network infrastructure.
