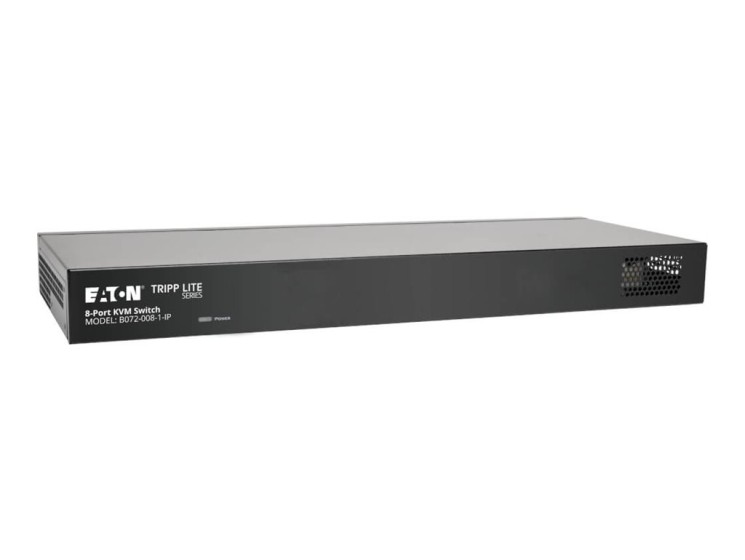

Eaton Tripp Lite series 8-Port IP Cat5 KVM Switch Compact 1+1 User Rackmount - KVM switch - CAT5 - 8 x KVM port(s) - 1 local user - 2 IP users - rack-mountable - TAA Compliant

Tripp Lite's 8-Port NetCommander Cat5 IP KVM switch is the optimal solution for controlling multiple computers from either a local console or a remote location. Simultaneous support is provided for up to one local and one remote user, allowing each to access a different port on the KVM at the same time. A single unit occupies a mere 1U of rack space, yet can control up to 8 directly connected computers. Each computer/server can be located up to 100 ft. from the KVM switch using Cat5e/6 cabling, with support for video resolutions up to 1920 x 1080 @ 60Hz.
A full-screen graphical OSD with multi-level authentication(Administrator and User) allows you to quickly and efficiently manage your installation. Allows for remote authentication via RADIUS and LDAP/S, and supports both IPv4 and IPv6. The OSD includes a range of settings for system configuration that allow you to add accounts, customize account access, install a SSL certificate, backup and restore system settings, upgrade firmware, and more.
Accessing the connected computers is a breeze; a wide range of video and mouse sync settings ensure optimal remote session performance in any situation. In addition to ports for computers/servers, two serial ports are provided for the connection and control of serial manageable devices such as PDU's, firewalls, and routers. IP PDU's can be added as devices to be controlled by the KVM, and individual KVM ports can be assigned to a PDU port, giving you the ability to Power Cycle or Power Off/On the computer/server connected to that port. Additionally, Virtual Media allows an.iso file located in a Shared folder of a SAMBA or NFS server to be mounted to a Target Server and accessed as if it were directly stored on it. Virtual Media data transfer rates up to 12Mbps(B078-101-USB2 required) are supported. A B078-101-USB-1 can be used to provide Virtual Media support, but only at speeds up to 1Mbps.
Other features include dual ethernet ports, SNMP messaging, and a log that records the events that take place on the installation. Constructed of heavy-duty steel housing.

• Expandable - cascade a second level of KVM switches to control up to 128 servers from a single station
• Rack mountable: sleek, 1U space saving KVM switches
• Innovative CAT5 technology: eliminate cable clutter at the rack
• Multi-layer security: protects your corporate data
• Easy server management: choice of on screen display, hot-key, or push button control
• Multi-platform: PS/2 and USB support

• Versatile connectivity options
  The KVM switch supports multiple interfaces, including KVM, LAN, serial, USB, and VGA, making it suitable for a variety of server configurations and user needs.
• Robust security features
  Equipped with 128-bit AES encryption and multi-level account access, the switch ensures secure management and protects sensitive data during remote access.
• High-performance display capabilities
  Supports a maximum video resolution of 1920 x 1080 with a V-Sync rate of 60 Hz, enabling clear and smooth visual output for any connected display.
• Compliance with safety standards
  The device adheres to CSA, RoHS, and IEC 60950-1 standards, ensuring reliability and safety for users in diverse environments.
• Flexible access and management
  The KVM switch allows one local user and two IP users simultaneous access, facilitating collaborative management and efficiency in server operations.

Tripp Lite's 8-Port NetCommander Cat5 IP KVM switch is the optimal solution for controlling multiple computers from either a local console or a remote location. Simultaneous support is provided for up to one local and one remote user, allowing each to access a different port on the KVM at the same time. A single unit occupies a mere 1U of rack space, yet can control up to 8 directly connected computers. Each computer/server can be located up to 100 ft. from the KVM switch using Cat5e/6 cabling, with support for video resolutions up to 1920 x 1080 @ 60Hz.
