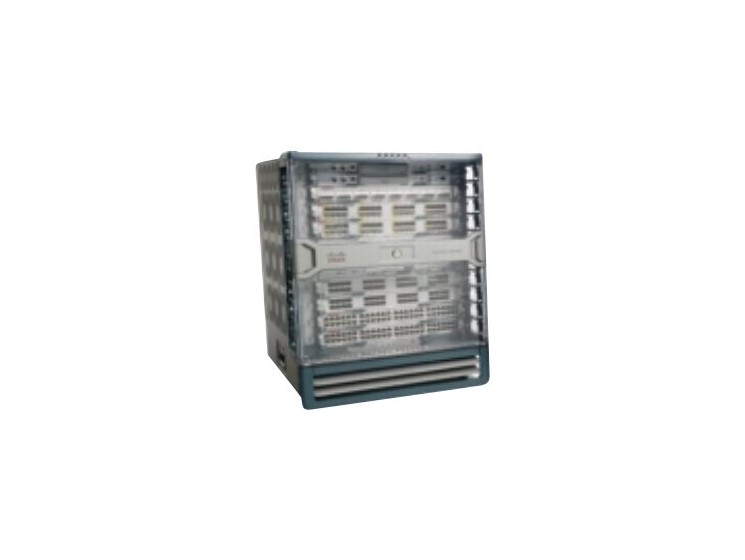

Cisco Nexus 7009 - Bundle - switch - L3 - Managed - rack-mountable - with Cisco Nexus 7000 Series Supervisor Module, 5x Cisco Nexus 7000 Series Fabric-2 Module
Cisco Nexus 7009 Bundle includes Cisco Nexus 7000 series switches, Cisco Nexus 7000 series supervisor module and Cisco Nexus 7000 fabric module.
The Cisco Nexus 7000 series switches combine the highest levels of scalability with operational flexibility. The Cisco Nexus 7000 series switches comprise a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second. Designed to meet the requirements of the most mission critical data centers, it delivers continuous system operation and virtualized, pervasive services. The Cisco Nexus 7000 series is based on a proven operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative design is purpose built to support end-to-end data center connectivity, consolidating IP, storage, and interprocess communication (IPC) networks onto a single Ethernet fabric. The first in the next generation of switch platforms, the Cisco Nexus 7000 series provides integrated resilience combined with features optimized specifically for the data center for availability, reliability, scalability, and ease of management.
The Cisco Nexus 7000 series supervisor module is designed to deliver scalable control plane and management functions for the Cisco Nexus 7000 series chassis. The supervisors control the Layer 2 and 3 services, redundancy capabilities, configuration management, status monitoring, power and environmental management, and more. It provides centralized arbitration to the system fabric for all line cards. The fully distributed forwarding architecture allows the supervisor to support transparent upgrades to higher forwarding capacity-capable I/O and fabric modules. The supervisor incorporates an innovative dedicated connectivity management processor (CMP) to support remote management and troubleshooting of the complete system.
The Cisco Nexus 7000 fabric modules for the Cisco Nexus 7000 series Chassis are separate fabric modules that provide parallel fabric channels to each I/O and supervisor module slot. Up to five simultaneously active fabric modules work together delivering up to 230 Gbps per slot. Through the parallel forwarding architecture, a system capacity of more than 8 Tbps is achieved with the five fabric modules. The fabric module provides the central switching element for fully distributed forwarding on the I/O modules.
- THE CISCO NEXUS 7000 SERIES SWITCHES FEATURES:
- Front-to-back airflow with 10 front-accessed vertical module slots and an integrated cable management system, facilitates installation, operation, and cooling
- 18 front-accessed module slots with side-to-side airflow in a compact horizontal form factor with purpose-built integrated cable management eases operations and reduces complexity
- The system uses dual dedicated supervisor modules
- Midplane design supports flexible technology upgrades as your needs change and provides ongoing investment protection
- THE CISCO NEXUS 7000 SERIES SUPERVISOR MODULE FEATURES:
- Continuous system operation
- Active and standby supervisor
- Segmented and redundant out-of-band provisioning and management paths
- Virtualization of the management plane
- Integrated diagnostics and protocol decoding with an embedded control plane packet analyzer
- Fully decoupled control plane and data plane with no hardware forwarding on the module
- Distributed forwarding architecture, allowing independent upgrades of the supervisor and fabric
- Transparent upgrade capacity and capability; designed to support 40 Gigabit and 100 Gigabit Ethernet
- Superior operational efficiency
- System locator and beacon LEDs for simplified operations
- Dedicated out-of-band management processor for 'lights out' management
- THE CISCO NEXUS 7000 FABRIC MODULES FEATURES:
- High availability and redundancy
- Nondisruptive addition and removal of fabric modules
- Arbitrated crossbar for unicast
- Multistage crossbar fabric
- Superframing and frame segmentation
- THE CISCO NEXUS 7000 SERIES SWITCHES FEATURES:
Energy efficient design
The Cisco Nexus 7000 series uses power supplies that are up to 90-percent efficient, so less power is wasted as heat and more power is available for the system to use than with typical power supplies. Consolidation of multiple switches in the Cisco Nexus 7000 series is enabled by the powerful combination of high density and performance, support for device virtualization, and comprehensive reliability and availability features. - THE CISCO NEXUS 7000 SERIES SUPERVISOR MODULE FEATURES:
High availability
Two supervisor modules operate in active and standby modes with stateful supervisor failover to enhance total system availability. - Resilient dedicated connectivity to each fabric and I/O module slot
Dual redundant Ethernet out-of-band channels to each module and fabric provide resilience for communication between the control and line card processors. - Embedded packet analyzer
An advanced integrated troubleshooting tool reduces the need for dedicated protocol analyzers and provides faster resolution of control plane problems. - Front-panel LEDs
LEDs provide visible indication of the supervisor ID, active or standby status, power management, and activity on the compact flash drive. - Identification (ID) LED
Using the beacon feature, the administrator can clearly identify the chassis and supervisor module. - Dedicated operating environment
An independent remote system management and monitoring capability allows 'lights out' management of the system. - Monitoring of supervisor status and initiation of resets
Remote monitoring removes the need for separate terminal server devices for out-of-band management. - Access to supervisor logs
Access to critical log information enables rapid detection and prevention of potential system problems. - THE CISCO NEXUS 7000 FABRIC MODULES FEATURES:
High availability and redundancy
The fabrics support multilevel redundancy, where all available fabrics are active, and provide redundancy for all other fabric modules. All I/O module slots receive a fair share of the total fabric bandwidth, helping ensure lossless forwarding in the event of failover. - Scalable fabric
The combined fabric modules deliver 10 channels per I/O module and 5 channels per supervisor module, for a scalable capacity of more than 8 Tbps for forwarding performance, which can be increased as your needs grow. - Nondisruptive addition and removal of fabric modules
The switch capacity can scale with the addition of modules, with transparent upgrades for continuous operations. - Arbitrated crossbar for unicast
Class-of-service-aware forwarding is delivered in a fully distributed forwarding system that allows future enhancements to Ethernet to support unified I/O. - VoQ
In conjunction with the supervisor module, VoQ provides a quality-of-service (QoS) aware lossless fabric, avoiding the problems associated with head-of-line blocking. - Multistage crossbar fabric
System forwarding performance is enhanced by a combination of local fabric switching between ports on the same module and centralized forwarding through the fabric for ports on different modules. - Superframing and frame segmentation
Crossbar efficiency is optimized by the use of superframing and frame segmentation to provide deterministic latency and throughput. - ID LED
Using the beacon feature, the administrator can clearly identify the chassis and fabric module.
Cisco Nexus 7009 Bundle includes Cisco Nexus 7000 series switches, Cisco Nexus 7000 series supervisor module and Cisco Nexus 7000 fabric module.
Ražotājs | Cisco | |
---|---|---|
Produkta līnija | Cisco Nexus | |
Operatīvā atmiņa (RAM) / Apjoms | 8 GB | |
Atmiņa / Izmērs | 8 | |
Networking / Tips | Switch | |
Networking / Remote Management Protocol | CLI, SNMP 1, SNMP 2c, SNMP 3 | |
Networking / Kategorija | Network hubs and switches | |
Networking / Manageable | Jā | |
Networking / Form Factor | Rack-mountable |
Ražotāja kods | N7K-C7009-BUN2 |
---|---|
Produkta līnija | Cisco Nexus |
Ražotājs | Cisco |
Operatīvā atmiņa (RAM) / Apjoms | 8 GB |
Atmiņa / Izmērs | 8 |
Networking / Tips | Switch |
Networking / Remote Management Protocol | CLI, SNMP 1, SNMP 2c, SNMP 3 |
Networking / Kategorija | Network hubs and switches |
Networking / Manageable | Jā |
Networking / Form Factor | Rack-mountable |
Networking / Advanced Switching | Layer 3 |
Dimensijas / Platums | 43.9 |
Dimensijas / Dziļums | 61 |
Dimensijas / Augstums | 62.2 |
Header / Kit | Bundle |
Header / Model | 7009 |
Header / Packaged Quantity | 1 |
- Cisco Nexus 7009
- Cisco Nexus 7000 Series Supervisor Module, 5x Cisco Nexus 7000 Series Fabric-2 Module
