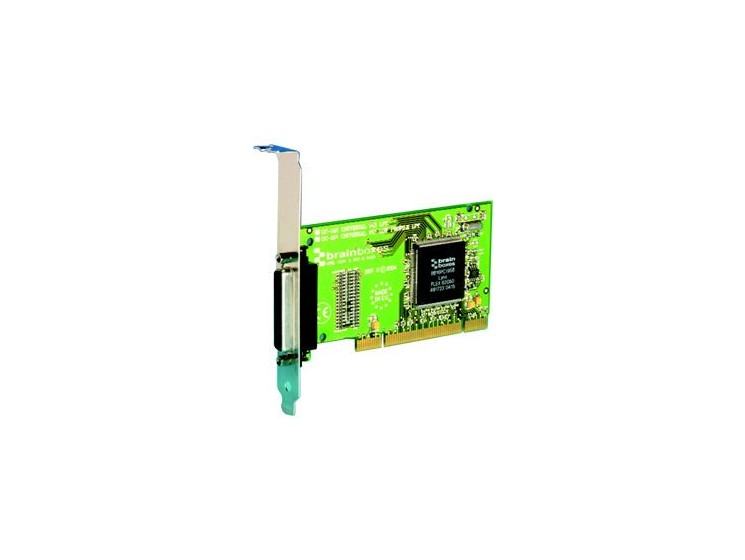

Brainboxes UC-146 - Parallel adapter - PCI - IEEE 1284

Universal PCI card providing one standard height LPT port.

• 1 LPT port
• Universal PCI
• Drivers for all popular operating systems

• Universal PCI
  Universal products allow compatibility with both 3.3-volt and 5-volt PCI systems. This ensures that Brainboxes universal card range is backward compatible with older systems and works with all PCI systems.
• PCI compliant
  All Brainboxes Universal PCI cards are fully PCI version 3.0 compliant, in accordance with the PCI-Special Interest Group (PCI-SIG).
• 4 layer PCB
  Printed Circuit Board with 4 layers of circuitry complies with the PCI SIG best practice guideline and ensures a more reliable card. 1 layer is for power and 1 for ground which leads to greater EMC shielding for the signals. This ultimately gives greater signal integrity.
• Surface Mount Components
  Most components on a Brainboxes card are placed by a surface mount machine. The surface mount machine allows for highly accurate and fast production of Brainboxes cards.
• Capacitors
  As required by the PCI-SIG all Brainboxes cards have capacitors connected to all the power pins on the PCI connector, near to the connector. This ensures that the electrical power rails on the Brainboxes card stay at the right voltage, regardless of the power demands placed on them. This helps data signals keep their integrity.
