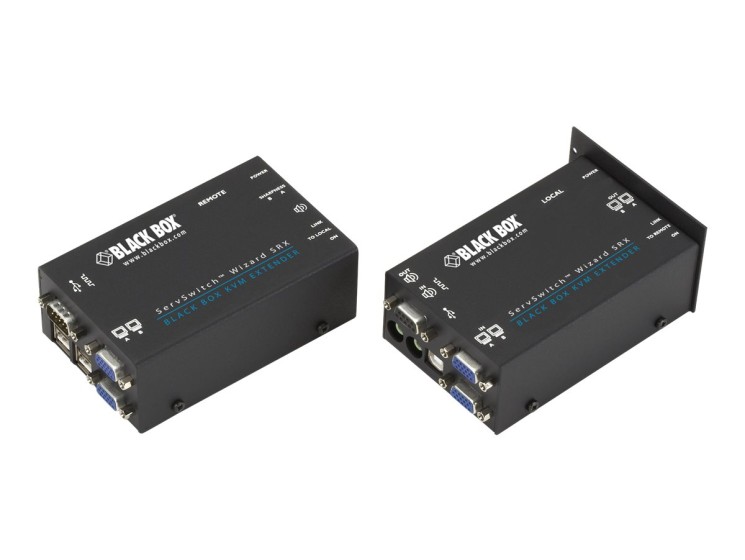

Black Box ServSwitch Wizard USB SRX Dual-Video - KVM / audio / serial / USB extender - up to 50 m

Extend Dual VGA with USB 1.1 or 2.0 and stereo audio 164 feet over CATx. The power of transparent USB ServSwitch Wizard USB SRX KVM Extender Dual-Video from Black Box combines VGA USB 1.1 or USB 2.0 audio and RS232 and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to eight dual-video versions in just 2U.
This model of the SRX series uses two CATx links to transmit the signals. The second video link carries a transparent RS232 port up to 19.2 kbps.
The local unit has audio and VGA feed-through giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

• Fine adjustable video quality for resolutions up to 1920 x 1200 at 60Hz
• DDC EDID read from display to avoid plug-and-play issues
• Local VGA and stereo audio feed through
• Dual-Video model also offers additional RS-232/V.24 transmission
• Transparent USB 1.1 supports up to 50 meters of distance

• The power of transparent USB
  The extender combines VGA, USB 1.1 and audio and sends them across a single CATx cable up to 50 meters. A recessed rotary knob allows for fine tuning the video image, while crystal-clear stereo audio and transparent USB 1.1 works via plug-and-play. All USB devices are supported that fulfill the USB 1.1 specification on both 1.5 Mbit (low speed) and 12 Mbit (full speed).
• DDC EDID read and store support
  Modern graphic adaptor cards - even with analog output - require the presence of DDC (Display Data Channel) information. Without it, they do not output any video or just the lowest resolution without any option to change it to a higher one. The Wizard SRX Extenders read the DDC information from the attached display and store it in the local unit's non-volatile memory.
• Support for RS-232/V.24 as well
  The Dual Video version of the SRX series (ACU5052A) needs two CATx links to transmit all the signals. Additionally the second video link carries a transparent RS-232/V.24 port up to 19200 baud.
• Local access
  All local units have audio and VGA feed through. In combination with operating systems that support multiple keyboards and mice, this offers a local access option when plugging a keyboard and mouse directly into the spare PC USB ports.

Extend Dual VGA with USB 1.1 or 2.0 and stereo audio 164 feet over CATx. The power of transparent USB ServSwitch Wizard USB SRX KVM Extender Dual-Video from Black Box combines VGA USB 1.1 or USB 2.0 audio and RS232 and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.
