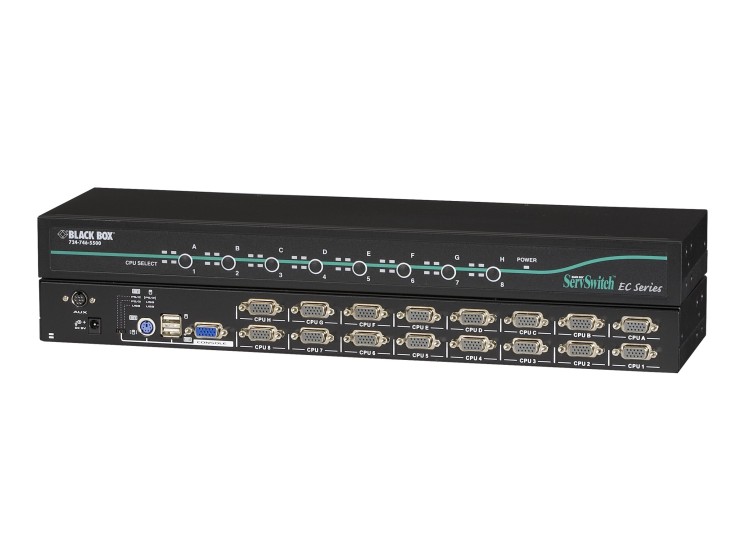

Black Box ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles - KVM switch - 16 x KVM port(s) - 1 local user - desktop

Want the option of using either a PS/2 or USB keyboard and mouse to control a number of PS/2 and USB servers? The new ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles makes it all possible.
Perfect for areas where you have a mix of servers and console control devices, this ServSwitch has a rear-panel slide switch that you use to select either PS/2 or USB console mode.
Models are available for switching between 4, 8, or 16 servers from a single console. To expand your switching platform to include additional servers - up to 136 in all with the 16-port model - simply cascade units in a master-slave configuration.
Ideal for applications where you have a limited amount of space, the 1U-high ServSwitch EC can be used on the desktop. As an added space-saving feature, the switch requires just one HD15 connector for each server connection. Keyboard, monitor, and mouse circuitry is built into a single connector.
The ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles also has on-screen display (OSD) features for switching between servers and managing server connections. Navigate through the OSD menus using a function key, and use the OSD interface to view each port's connection status, lock a server from unauthorized access, and even assign server names that are up to 14 characters long. The switch stores all name entries in non-volatile memory.
You can also switch servers by pushing front-panel buttons or by using a sequence of hotkeys on your keyboard. Or let the switch do it automatically for you with its AutoScan function, which enables the ServSwitch EC to scan and switch between servers at an interval determined by you. When AutoScan detects any keyboard or mouse activity, it suspends the scanning until activity stops, then resumes with the next computer in sequence.

• Supports up to 16 KVM ports for extensive device management
• Maximum video resolution of 1920 x 1440 for clear displays
• Built-in LED panel for effective visualization of status indicators
• Includes rack mounting kit for secure installation
• Cascadable design for scalable connectivity solutions

• Robust connectivity options
  Equipped with 16 KVM ports, the Black Box ServSwitch allows for comprehensive management of multiple computers, accommodating both PS/2 and USB interfaces.
• High video quality
  The KVM switch supports a maximum video resolution of 1920 x 1440, providing sharp and detailed visuals to enhance user experience.
• User-friendly interface
  Featuring an on-screen display and built-in LED panel, this KVM switch simplifies the monitoring of port status, enabling quick management.
• Space-efficient design
  With a 1U rack mount form factor, this switch is designed for integration into existing server setups, minimizing additional space requirements.
• Reliable power management
  Utilizing a 9 - 12 V external power adapter and a nominal voltage of AC 120/230 V, this device ensures steady operation across connected systems.
