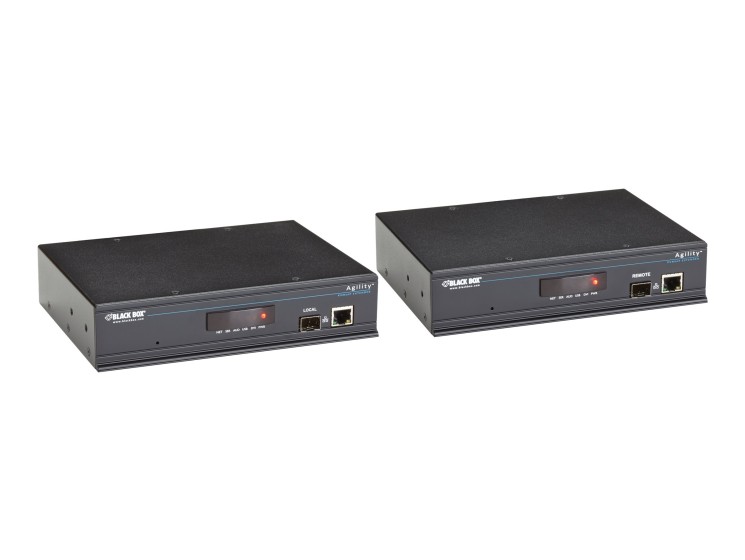

Black Box ServSwitch Agility IP-Based KVM Extender Single-Head - Kit - video/audio/USB extender - 1GbE - up to 10 km - TAA Compliant

ServSwitch Agility with DVI, USB, audio and RS232 over IP enables you to do more and go farther with perfect digital video over nearly unlimited distances. The flexible topology of the Agility gives you application possibilities that are optimal for KVM devices. The Agility can be a KVM extender, a KVM switch, or a sharing portal. The Agility DL (ACR1002A) has two single link channels and one dual link DVI video channel for computers with two digital video outputs. The Agility also features SFP slot that can be used to establish an inexpensive and fast point-to-point extension over fiber as well as second redundant link or bandwidth aggregation with a high throughput for high demanding video applications like RGB 4:4:4 or Full HD.

• Flexible KVM extension and KVM switching
• Delivers perfect digital video
• Single link up for HD video and RGB 4:4:4
• Dual link up to 2560x1600
• No-loss compression
• Optimized extreme fast switching
• Configure your network to suit your needs
• Point-to-point extension
• KVM switching
• Single-target sharing or multicasting
• Allows selective switching of the DVI, USB, audio, and RS232 channels
• Features keyboard and mouse emulation, virtual transparency for other standard human interface devices, such as touch screens or flash drives
• Distance is only limited within a LAN or CAN network
• Fanless design ensures silent operation

• Switching network
  You can turn your network into a KVM switch with the Agility. Create a KVM switching system with as many users as you want - just keep adding receivers for every user console. With mixed channels combine digital video, audio, USB devices and serial data from different computers. When you change channels on the receiver unit, you switch DVI, audio, and USB to another source, while the transmitters are not in use continue to emulate the previously attached console.
• Single target sharing and pooling
  In this configuration, multiple users can share a single remote computer. Users can use three different ways of connection.
• Multicasting
  This great feature enables the Agility to reflect video and audio from a single computer over an IP network to several receiving units. To prevent saturating the network, an installed network switch should feature IGMP snooping. This prevents an IP switch from passing on multicast data onto ports being not part of the Agility system. Multicast content can be sent to as many receivers as you want with no distance limits within the network. This is an advanced configuration for digital signage applications.
• Point-to-point
  Use the Agililty as a point-to-point KVM extender. Use Cat 6 cable to connect a transmitter and a receiver to deliver optimal quality DVI video, audio in CD quality, and USB over big distances. You may even configure this setup to go to multiple screens at one time or add other Agility units for additional functionality.
• Multihead graphics and control desk operation
  Control room setups and similar applications require multiple graphic heads to be switched simultaneously. The Agility allows easy synchronizing of switchable channels that are consisting of multiple video signals from either a single source computer or even multiple computers. The selective channel configuration offers trading switch capabilities from only one keyboard and mouse at a control desk monitoring various video signals from many sources.
• Connection reliability
  ServSwitch Agility is designed for mission critical environments. In a point-to-point connection, the link between transmitter and receiver will automatically reestablish again after a network disconnect or power shortage. In addition, the SFP slot can be used to establish a second backup link in 24/7 applications.

ServSwitch Agility with DVI, USB, audio and RS232 over IP enables you to do more and go farther with perfect digital video over nearly unlimited distances. The flexible topology of the Agility gives you application possibilities that are optimal for KVM devices. The Agility can be a KVM extender, a KVM switch, or a sharing portal. The Agility DL (ACR1002A) has two single link channels and one dual link DVI video channel for computers with two digital video outputs. The Agility also features SFP slot that can be used to establish an inexpensive and fast point-to-point extension over fiber as well as second redundant link or bandwidth aggregation with a high throughput for high demanding video applications like RGB 4:4:4 or Full HD.
