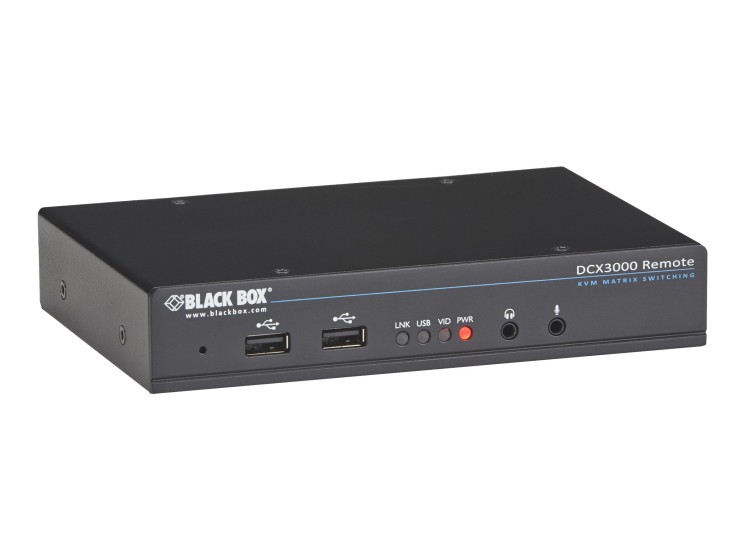

Black Box DCX3000 Digital CATx KVM Matrix Remote User Station - Video/audio/USB extender - up to 50 m - TAA Compliant - for P/N: DCX1000

User station receiver units for the High-Performance DCX Series Digital KVM Matrix Switch. Small yet powerful Small in size but large in features and performance the DCX3000/DCX1000 system is an ideal solution for process monitoring and control broadcast studios medical labs testbeds and advanced data centers where the personnel numbers are lower than in enterprise-sized organizations.
Interface-powered server access modules (SAMs) extend DVI or DisplayPort and USB signals over standard CATx cabling. The switch can be located up to 32 feet (10 m) from the server or CPU and up to 164 feet (50 m) from the remote unit. The SAMs support audio via the USB interface and the receiver can output the audio through the 3.5-mm jack connection.
Not every broadcast studio or control room needs a large expensive video matrix switch with all the bells and whistles. The DCX3000 has an attractive price point for smaller applications while still providing crystal-clear video and fast matrix switching.

• High-performance HD KVM matrix switching system for smaller multiuser applications
• Designed for small and medium sized applications migrating from analog to digital KVM
• Fast, reliable switching of digital KVM, HD video, audio, and USB

• Switch via graphical user interface (GUI) or quick-fire hotkeys
  The GUI moves away from traditional text-only on-screen display menus with thumbnail previews that are bigger and easier to see. The UI uses auto refreshed thumbnails to configure each connected device.
• Remote user station units support HDMI displays and DVI connections
  Because the DCX3000 system uses zero compression, every pixel is delivered for crystal-clear video.
• Small, yet powerful
  Small in size, but large in features and performance, the DCX3000 system is an ideal solution for process monitoring and control, broadcast studios, medical labs, test beds, and advanced data centers where the personnel numbers are lower than in enterprise-sized organizations.
