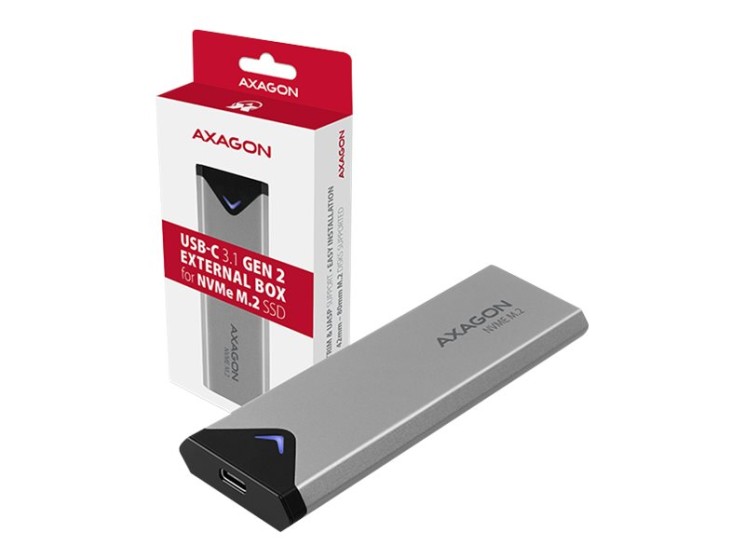

AXAGON EEM2-UG2 - Storage enclosure - M.2 - M.2 NVMe Card / PCIe (NVMe) - USB 3.2 (Gen 2)

Super fast external box AXAGON EEM2-UG2 with USB 3.2 Gen 2 interface is designed for NVMe (PCI-Express) M.2 SSD disks.
Latest USB interface allows you to enjoy the speed of modern M.2 SSD drives. Due the fast USB 3.2 Gen 2 interface is the transmission Speed up to 10Gb/s. Convenient connection allows reversible USB-C connector. The external M.2 box also supports other modern functions, e.g. TRIM.
In the external box, NVMe M.2 SSD disks with a size up to 22x80 mm can be mounted. The box is not limited by capacity of SSD disks. M.2 cards may be one-sided or double-sided.
The aluminum body of the box and the heat-conductive pads ensure very good cooling of the inserted M.2 SSD.
Insert the M.2 SSD disk into this box and you can easily form a fast and compact external disk. The Box can be used with both computers and laptops, so with mobile phones and tablets with the OTG supporting function.

• Compatible with USB 3.2 Gen 2, backward compatible with USB 3.1 Gen 1 / USB 3.0. and USB 2.0
• Supports transmission rates 10.000 / 5000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed)
• Support of M-key or B+M-key NVMe (PCI-Express) M.2 SSD disks without maximum capacity limitation
• Support of M.2 drives with a size of 2242, 2260, 2280 mm
• Support of both one-sided and double-sided M.2 SSDs
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3 Specification
• Compliant with USB Mass Storage Class Specification
• The total bandwidth / transmission rate of the box is determined by the USB 3.2 Gen 2 interface used (theoretically up to 10 Gbit/s)
• The real bandwidth / transmission rate of the box is around 1000 MB/s (1 GB/s) is given by the limits of the USB 3.2 Gen 2 interface
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later
• Support of TRIM functionality to limit gradual degradation of the SSD performance over time
• SSD boot support in external box
• Possibility to connect your device while running thanks to the Hot Plug support
• Full Plug and Play support
• Standby Support - Drive asleep after 5 minutes of inactivity
• Supplying the power via USB bus up to 900mA from one USB port is sufficient in all cases
• A decent blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking)
• Heavy-duty aluminum body and the cooling pads helps to better cool the M.2 SSD
• Higher surface temperature of the box is not a problem - thanks to the aluminum body, the heat generated by the operation of the disc is better dissipated and transferred to the surroundings
• Connection via USB 3.2 Gen 2 Type-C female connector
• USB Type-C male / USB Type-C male cable 22 cm long is included

• Durable aluminum construction
  The enclosure's aluminum material provides strength and durability, ensuring long-lasting protection for internal SSDs while remaining lightweight for portability.
• Efficient heat management
  Designed to dissipate heat effectively, this enclosure helps maintain optimal temperatures during operation, promoting the longevity and reliability of the SSD.
• Convenient hot plug capability
  The hot plug feature allows users to connect and disconnect the storage device without needing to power down the system, enhancing flexibility and convenience.
• Built-in blue LED indicator
  An integrated blue LED provides a visual indication of power status and drive activity, allowing users to monitor performance at a glance.
• Supports multiple M.2 configurations
  Accommodating M.2 modules with key M or key B+M based on PCIe allows versatility in storage solutions, catering to diverse user needs.
