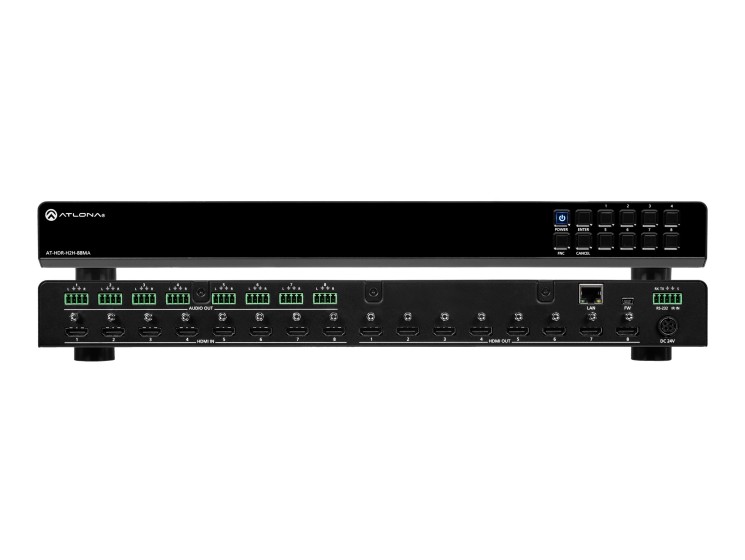

Atlona HDR-H2H-88MA 4K HDR 8x8 HDMI to HDMI Matrix Switcher - Video/audio switch - desktop, rack-mountable

The Atlona AT-HDR-H2H-88MA is an 8×8 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-88MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

• Fast, blink-free switching
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
• HDCP 2.2 compliant
• Independent CEC display control to each output
• HDMI audio de-embedding for each input
• TCP/IP, RS-232, and IR control

• Versatile connectivity
  The HDR-H2H-88MA features an array of interfaces including HDMI inputs and outputs, mini-USB, and serial (RS-232) connections, providing flexibility for various device integrations.
• High-quality audio support
  This matrix switcher supports various high-definition audio formats such as Dolby TrueHD and DTS-HD Master Audio, ensuring an immersive sound experience.
• Rack-mountable design
  The included rack mounting kit allows for easy installation in professional settings, maintaining a clean and organized AV setup.
• Resolution capability
  Capable of supporting video resolutions up to 4096 x 2160, the HDR-H2H-88MA is designed for applications that require high visual fidelity.
