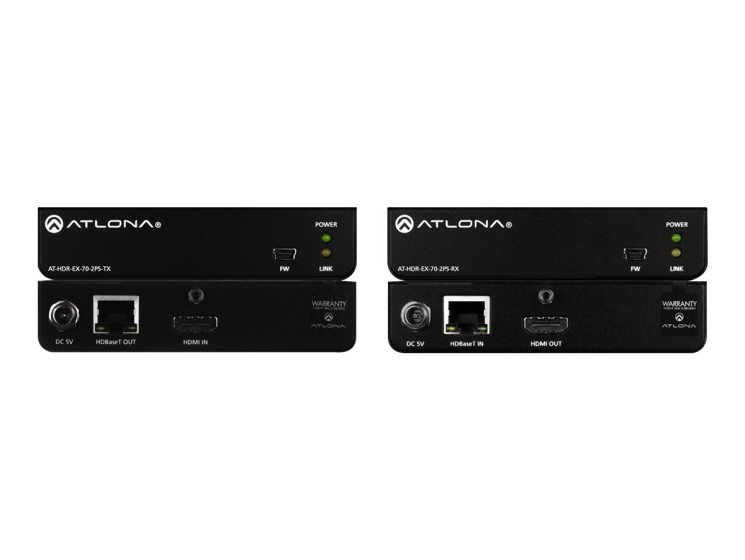

Atlona HDR-EX-70-2PS 4K HDR HDMI Over HDBaseT - TX/RX Kit - video/audio extender - HDMI, HDBaseT - up to 70 m

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4: 4 video signal extension over HDBaseT. The HDR-EX-70-2PS delivers a cost-effective solution for HDMI extension, with locally powered transmitter and receiver endpoints as well as surface mounting hardware for discreet installation.

• Compatibility with new and emerging 4K/UHD and HDR-capable sources and displays
• Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0a specification
• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices
• Compatible with HDR10 and other HDR formats enabled in the HDMI 2.0a specification
• Ready to integrate with consumer video sources delivering HDR content
• Extends HDMI up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K HDR using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation
• Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression with no latency
• Innovative signal extension solution delivers very high, pristine image quality

Product Documents

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4: 4 video signal extension over HDBaseT. The HDR-EX-70-2PS delivers a cost-effective solution for HDMI extension, with locally powered transmitter and receiver endpoints as well as surface mounting hardware for discreet installation.
