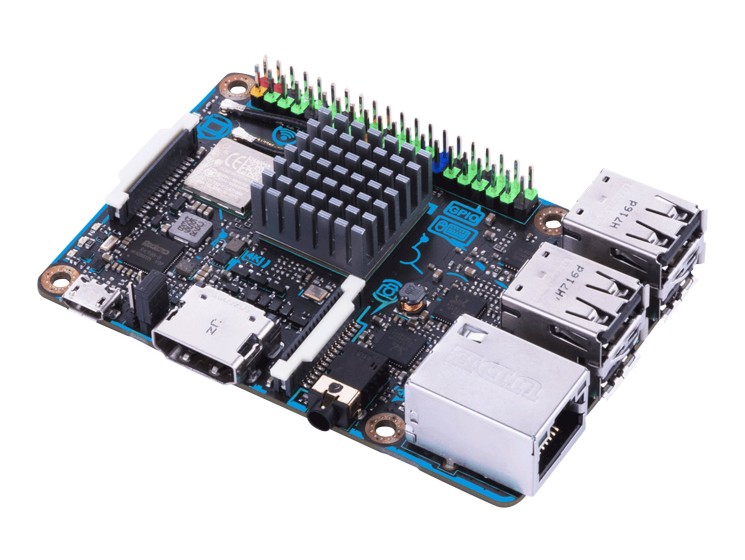

ASUS Tinker Board S R2.0 - Single-board computer - Rockchip RK3288-CG.W - RAM 2 GB - Flash 16 GB - 802.11b/g/n, Bluetooth 4.2 EDR

With its powerful and modern quad-core ARM-based processor - the Rockchip RK3288 - Tinker Board S offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali-T764 GPU, Tinker Board S's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

• HD audio quality
• Maker-friendly, with IOT connectivity
• Enhanced DIY design

• HD audio quality
  Tinker Board S is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module. The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
• Maker-friendly, with IOT connectivity
  Tinker Board S features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board S is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more. Tinker Board S also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades. Tinker Board S also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
• Enhanced DIY design
  Careful consideration went into the design and development of the Tinker Board S to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers. The PCB dimensions and topology of the Tinker Board S align with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs. Tinker Board S also includes a heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.

With its powerful and modern quad-core ARM-based processor - the Rockchip RK3288 - Tinker Board S offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali-T764 GPU, Tinker Board S's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
