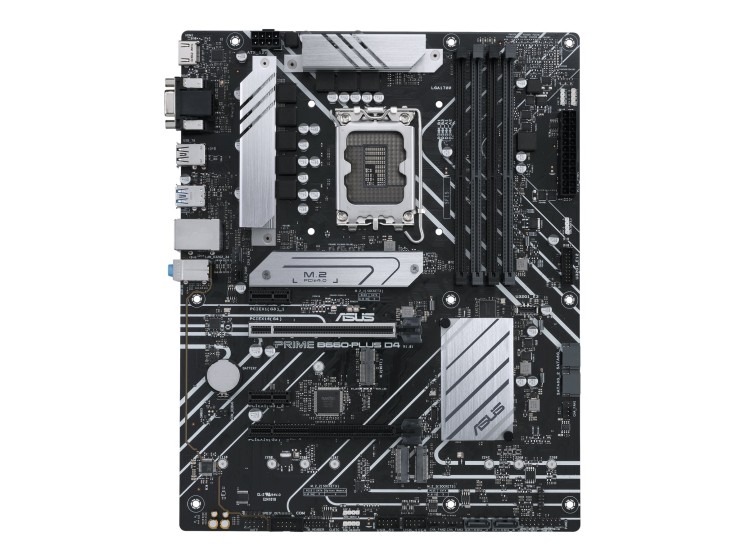

ASUS PRIME B660-PLUS D4 - Motherboard - ATX - LGA1700 Socket - B660 Chipset - USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotāja kods:
90MB18X0-M0EAY0
SKU:
M1024887
Garantija:
Bez PVN
Ar PVN
€ 150,79
Pieejami 5+ gab.
26. jūnijā
Datortehnikas cenas pasaulē turpina pieaugt. Iegādājies izvēlēto preci par šī brīža cenu.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- All-around energy efficiency
- Precise digital power control
- Advanced tuning for serious tweakers
- Quick and simple setup
- M.2 heatsink
- Multiple temperature sources
- All-around energy efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. - Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. - Advanced tuning for serious tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. - Quick and simple setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time. - M.2 heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws. - Multiple temperature sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
| Ražotājs | ASUS | |
|---|---|---|
| Allow shipment to parcel machine | Nē | |
| Free shipping | Nē | |
| Produkta līnija | ASUS | |
| Pamatplate / Processor Socket | LGA1700 Socket | |
| Procesors / Skaits | 0 | |
| Procesors / Maksimālais atbalstītais daudzums | 1 | |
| Pamatplate / Form Factor | ATX | |
| Pamatplate / Supported RAM Technology | DDR4 SDRAM | |
| Pamatplate / Supported RAM Speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.) | |
| Pamatplate / Chipset tips | Intel B660 | |
| Pamatplate / Modelis | PRIME B660-PLUS D4 | |
| Networking / Data Link Protocol | 2.5 Gigabit Ethernet | |
| Ražotājs | ASUS |
|---|---|
| Ražotāja kods | 90MB18X0-M0EAY0 |
| Ražotāja kods | 90MB18X0-M0EAY0 |
| Produkta līnija | ASUS |
| Ražotājs | ASUS |
| Interfaces / Storage | M.2 socket, Serial ATA-600 (RAID) |
| Interfaces / USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 |
| Pamatplate / Processor Socket | LGA1700 Socket |
| Procesors / Skaits | 0 |
| Procesors / Maksimālais atbalstītais daudzums | 1 |
| Operatīvā atmiņa (RAM) / Max Supported Size | 128 |
| Pamatplate / Form Factor | ATX |
| Pamatplate / Supported RAM Technology | DDR4 SDRAM |
| Pamatplate / Supported RAM Integrity Check | Non-ECC |
| Pamatplate / Supported RAM Speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.) |
| Pamatplate / Supported RAM (Registered or Buffered) | Unbuffered |
| Pamatplate / Chipset tips | Intel B660 |
| Pamatplate / Modelis | PRIME B660-PLUS D4 |
| Audio izvade / Tips | Sound card |
| Video izvade / Tips | Graphics adapter (CPU required) |
| Networking / Data Link Protocol | 2.5 Gigabit Ethernet |
| Dimensijas / Platums | 30.5 |
| Dimensijas / Dziļums | 24.4 |
| Citi / Product Type | Motherboard |
| Header / Packaged Quantity | 1 |
