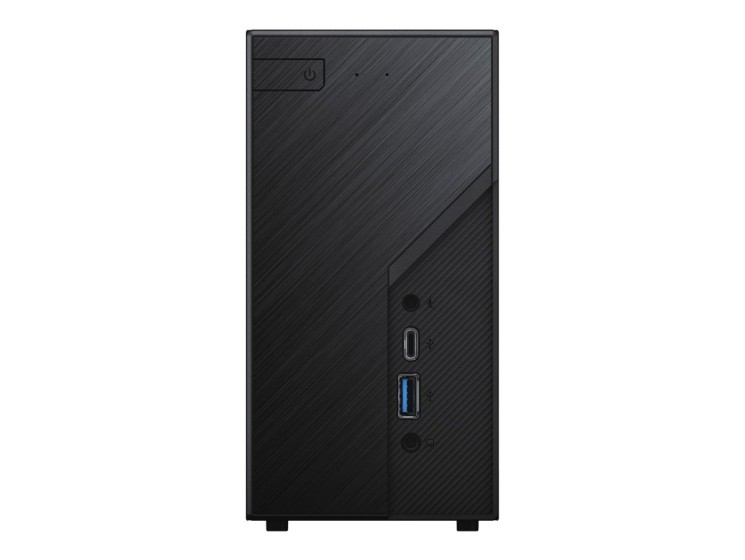

ASRock DeskMini H470 - Barebone - mini PC - LGA1200 Socket - Intel H470 - no CPU up to - RAM 0 GB - Gigabit Ethernet

• Dual DDR4-2933MHz SO-DIMMs
• Multi video outputs: 2x DisplayPort, HDMI and D-Sub
• 1x Alternate Mode USB Type-C
• 1x USB 3.2 Gen1 Type-C port
• 1x Ultra M.2 PCIe Gen3 x4 slot
• 2x 2.5" HDD/SSD tray with RAID 0/1
• 1x M.2 (2230) Wi-Fi slot

• Dr.MOS
  The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
• Premium 60A power choke
  Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
• Heatsink on MOSFET
  ASRock DeskMini H470 features aluminum MOSFET heatsink providing great heat dissipation to ensure system's stability in loading.
• ASRock BFB Technology
  ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance.
• Dual-channel DDR4-2933
  ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance.
• USB Alternate Mode
  ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable.
• Rapid USB connectivity
  ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4x USB 3.2 Gen1 ports on rear side.
• Triple 4K displays
  DeskMini H470 supports 3 displays output simultaneously! Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
