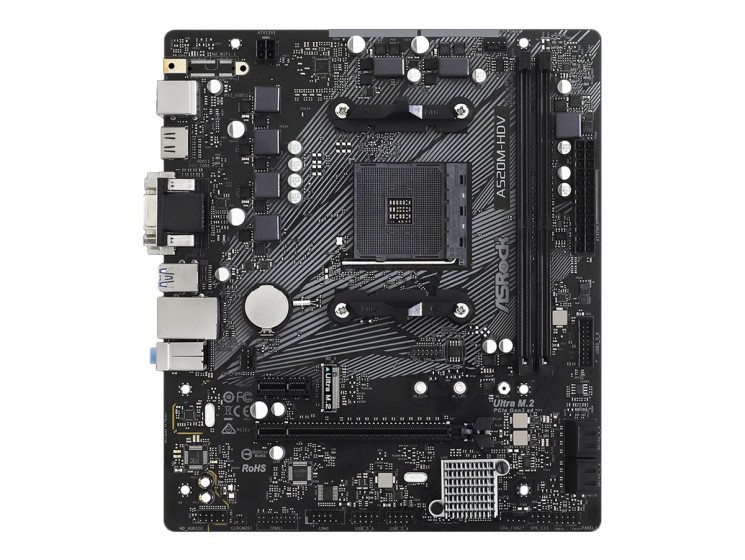

ASRock A520M-HDV - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotāja kods:
A520M-HDV
SKU:
M1024851
Garantija:
Bez PVN
Ar PVN
€ 59,27
€ 48,98
Noliktavā (3)
24. Jūlijs
Datortehnikas cenas pasaulē turpina pieaugt. Iegādājies izvēlēto preci par šī brīža cenu.
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
- HDMI 4k @60Hz
- 3 graphics outputs
- Premium 50A power choke
- High Density Glass Fabric PCB
- Sapphire black PCB
- Full Spike Protection
- Live Update & APP Shop
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. - HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - 3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus, the HDMI port supports 4K resolution. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Sapphire black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Ražotājs | ASRock | |
|---|---|---|
| Noliktava | AB Spolka / magnice | |
| Allow shipment to parcel machine | Nē | |
| Free shipping | Nē | |
| Produkta līnija | ASRock | |
| Pamatplate / Processor Socket | Socket AM4 | |
| Procesors / Skaits | 0 | |
| Procesors / Maksimālais atbalstītais daudzums | 1 | |
| Pamatplate / Form Factor | Micro ATX | |
| Pamatplate / Supported RAM Technology | DDR4 SDRAM | |
| Pamatplate / Supported RAM Speed | 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4533 MHz (O.C.), 4600 MHz (O.C.) | |
| Pamatplate / Chipset tips | AMD A520 | |
| Pamatplate / Saderīgie procesori | Ryzen | |
| Pamatplate / Modelis | A520M-HDV | |
| Networking / Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |
| Ražotājs | ASRock |
|---|---|
| Ražotāja kods | A520M-HDV |
| Ražotāja kods | A520M-HDV |
| Produkta līnija | ASRock |
| Ražotājs | ASRock |
| Interfaces / Storage | Serial ATA-600 (RAID), Ultra M.2 socket |
| Interfaces / USB / FireWire | USB 3.2 Gen 1 |
| Pamatplate / Processor Socket | Socket AM4 |
| Procesors / Skaits | 0 |
| Procesors / Maksimālais atbalstītais daudzums | 1 |
| Operatīvā atmiņa (RAM) / Max Supported Size | 64 |
| Pamatplate / Form Factor | Micro ATX |
| Pamatplate / Supported RAM Technology | DDR4 SDRAM |
| Pamatplate / Supported RAM Integrity Check | ECC, Non-ECC |
| Pamatplate / Supported RAM Speed | 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4533 MHz (O.C.), 4600 MHz (O.C.) |
| Pamatplate / Supported RAM (Registered or Buffered) | Unbuffered |
| Pamatplate / Chipset tips | AMD A520 |
| Pamatplate / Saderīgie procesori | Ryzen |
| Pamatplate / Modelis | A520M-HDV |
| Audio izvade / Tips | Sound card |
| Video izvade / Tips | Graphics adapter (CPU required) |
| Networking / Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Dimensijas / Platums | 23 |
| Dimensijas / Dziļums | 20.1 |
| Citi / Product Type | Motherboard |
| Header / Packaged Quantity | 1 |
Komplektācija
- ASRock A520M-HDV
- 2 x Serial ATA cable
- I/O back plate, 1 x M.2 screw
- Software
