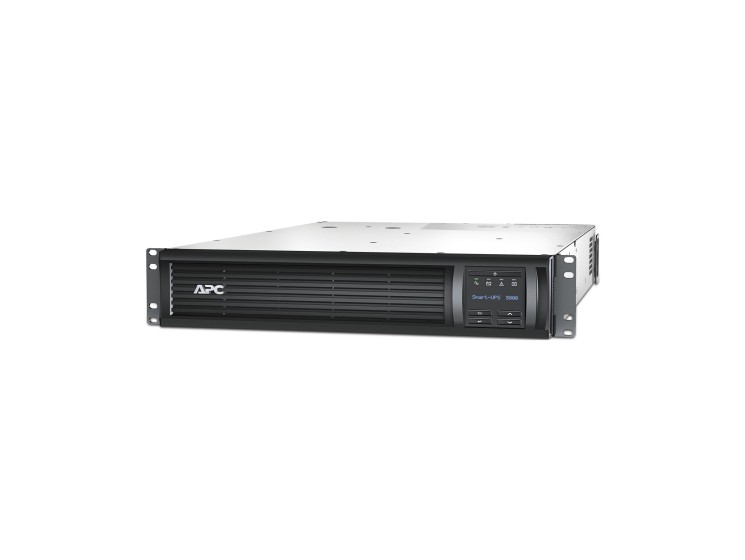

APC Smart-UPS 3000 LCD - UPS (rack-mountable) - AC 120 V - 2.7 kW - 3000 VA - RS-232, USB - output connectors: 8 - 2U - black - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A

Intelligent line interactive power protection ideal for core business servers and mid-range network gear. Smart-UPS is trusted by millions of IT professionals throughout the world to protect equipment and critical data by supplying reliable, network-grade power reliably and efficiently.
APC by Schneider Electric's Smart-UPS is the most popular uninterruptible power supply (UPS) in the world for servers and other network devices such as switches, routers workstations and point-of-sale devices. Available in either traditional tower, rack optimized, or extended run convertible form factor (750va-3000va). The world's most popular network and server UPS.
Trusted by millions to protect critical data and equipment from power problems its proven line interactive design supplies clean and reliable network-grade power over a wide range of utility conditions. Conditions include surges, spikes, brownouts, blackouts and other transient conditions that can cause costly downtime, data loss or hardware damage.
Smart-UPS are known for their intelligence, monitoring and control capability. Users can actively manage power to their critical devices using an intuitive and interactive display, through the supplied PowerChute Business edition software or remotely with optional network management cards that plug directly into the unit's Smart-slot interface.
Patent pending "green" mode provides optimum reliability and efficiency of > 97% which saves utility and cooling costs without compromising availability.
Advanced battery management provides Temperature compensated charging which extends life and advanced algorithms proactively recommend battery replacement date. In addition, Switched Outlet Groups can allow users to Reboot Hung devices, shed non-critical loads to conserve runtime, and set sequenced startup/turn off.

• Alpha/numeric LCD Display: intuitive LDC interface provides detailed and accurate information with ability to configure locally
• Network Grade Power Conditioning: extended range automatic voltage regulation (AVR), noise filtering and surge protection
• Communication ports: Serial, USB and Smart-slot for accessory cards
• Battery disconnect: convenient way to discontent battery for transport

• Intuitive LCD interface
  Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Predictive replace battery date
  Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Energy meter
  Provides actual kilowatt hours of usage for energy conscious users.
• InfraStruXure Central compatible
  Enables centralized management via APC InfraStruXure Central.
• Single switched outlet group
  Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
• SmartSlot
  Customize UPS capabilities with management cards.
• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Resettable circuit breakers
  Enables a quick recovery from overload events.
• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Adjustable voltage-transfer points
  Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Adjustable voltage sensitivity
  Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Audible alarms
  Provides notification of changing utility power and UPS conditions.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
• Boost and trim Automatic Voltage Regulation (AVR)
  Gives higher application availability by correcting low and high voltage conditions without using the battery.
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.
• Network manageable
  Provides remote management of the UPS over the network.
• Adjustable voltage sensitivity
  Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
• Predicative failure notification
  Provides early-warning fault analysis ensuring proactive component replacement.
