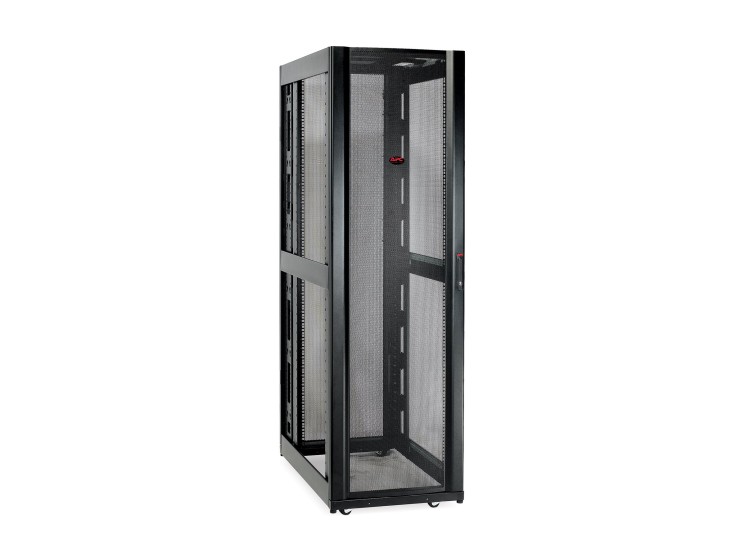

APC NetShelter SX Enclosure with Sides - Rack cabinet - black - 45U - 19" - TAA Compliant - for P/N: SMT2200I2U-BR, SRT1000XLA, SRT1500XLA, SRT2200XLA, SRT3000XLA, SRT3000XLAUS

Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.

• Optimized for high capacity cable management systems
• Cable access openings with pre-installed brushes
• Perforated front door with curved profile
• Quick release doors
• Easily removable cable access roof
• Adjustable mounting rails with captive hardware and rapid alignment
• Split rear doors
• Low-profile castors and adjustable leveling feet from underneath or above
• Integrated electrical grounding

• Optimized for high capacity cable management systems
  NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
• Cable access openings with pre-installed brushes
  A large cable access slot in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.
• Perforated front door with curved profile
  Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.
• Quick release doors
  Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
• Easily removable cable access roof
  Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
• Adjustable mounting rails with captive hardware and rapid alignment
  The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. Easy alignment feature integrated into the enclosure mounting rail and side brace for quick alignment verification without the use of tools to verify alignment. U positions are numbered front and back for rapid installation of equipment.
• Split rear doors
  Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.
• Low-profile castors and adjustable leveling feet from underneath or above
  Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
• Integrated electrical grounding
  The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
