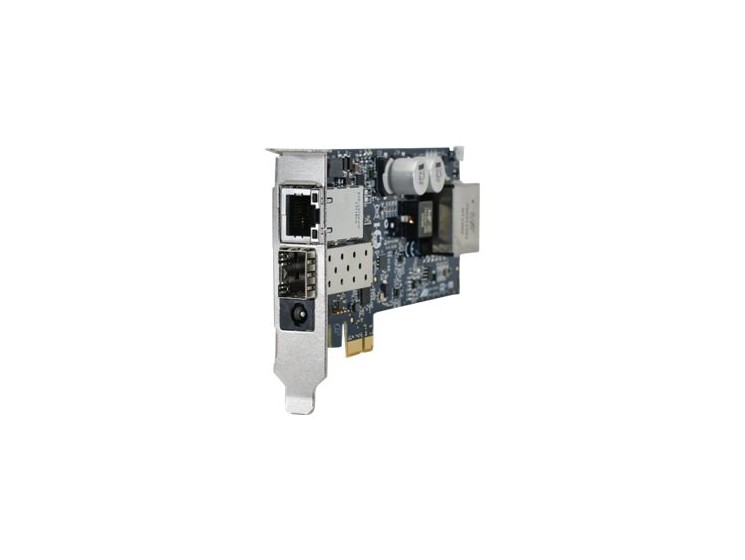

Allied Telesis AT-2914GP/SP - Network adapter - PCI Express x1 low profile - 100Base-FX/1000Base-X x 1 + 1000Base-T (PoE+) x 1 - TAA Compliant

The Allied Telesis 2914GP PoE+ network adapter allows a PC to power a VoIP phone or other traditional copper powered device over a secure fiber network.

• Supports 100Mbps and 1000Mbps optics
• Secured transmissions
• Advanced installation utility
• Advanced diagnostics
• Remote boot (PXE 2.1)
• TCP/IP checksum off-loading
• Priority queueing
• Driver support for popular operating systems

• VoIP/PoE flexibility
  The 2914GP is a two-port adapter with one SFP port and one 10/100/1000T copper port which is capable of supporting PoE+ devices up to 30W, up to the 802.3at standard of 25.5W. The 2914GP is unique because it allows devices using copper connections, such as VoIP phones, Wi-Fi Access Points (APs) and cameras to communicate via a secure fiber network - without the additional expense of media converters or a separate network to segment the traffic, thus saving installation and maintenance costs.
• VLAN capable
  VLAN IDs for the copper and fiber port can be set via a USB console communication port located on the adapter bracket. This allows the copper and fiber port to send separate VLAN IDS during normal operation as well as during system power-off states. This allows logical grouping of data and voice traffic and enforcement of security policies.
• Advanced manageability
  The priority queuing offered by the 2914GP Series lets users set up the network based on their own needs. Comprehensive diagnostic and configuration tools enable administrators to analyze adapter performance, and monitor traffic arriving on the network.

The Allied Telesis 2914GP PoE+ network adapter allows a PC to power a VoIP phone or other traditional copper powered device over a secure fiber network.
